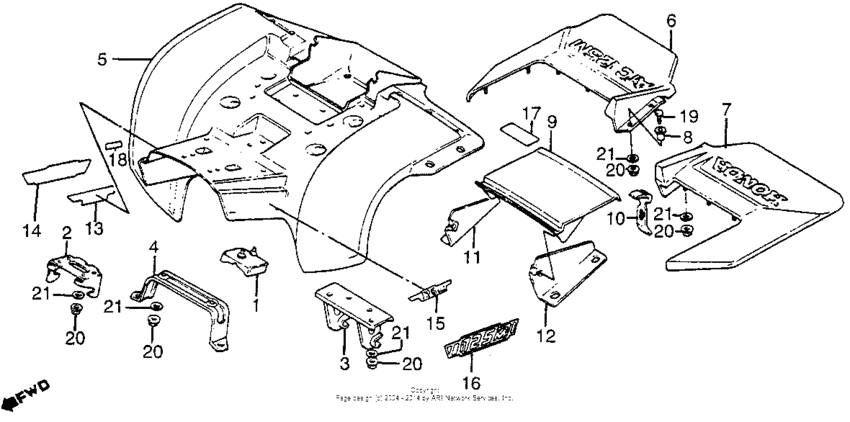

Rear fender Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1984
- Sales region
- USA
- Frame
- JH3TE010*EC000001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77201-942-000
Rubber, seat
|
77201-942-000 |
— | ||
|
2
|
2
80101-943-000
Catch, rr. fender
|
80101-943-000 |
— | ||
|
3
|
3
80102-968-000
Hinge, rr. fender
|
80102-968-000 |
— | ||
|
4
|
4
80106-968-680
Brkt, fender support
|
80106-968-680 |
— | ||
|
5
|
5
80110-VM6-680ZA
Fdr, l. rr. *r109*
|
80110-VM6-680ZA |
— | ||
|
6
|
6
80111-VM6-680
Splash guard, r. rr.
|
80111-VM6-680 |
— | ||
|
7
|
7
80116-VM6-680
Splash guard, l. rr.
|
80116-VM6-680 |
— | ||
|
8
|
8
80117-943-010 Colr, rr. sph guard |
80117-943-010 |
US $4.08 |
||
|
9
|
9
80211-VM6-681
Lid, tool box
|
80211-VM6-681 |
— | ||
|
10
|
10
80214-943-000
Band, tool box
|
80214-943-000 |
— | ||
|
11
|
11
80251-943-013 Holder, r. rr. |
80251-943-013 |
US $9.95 |
||
|
12
|
12
80256-943-013
Holder, l. rr.
|
80256-943-013 |
— | ||
|
13
|
13
87126-968-000
Stripe, r. side
|
87126-968-000 |
— | ||
|
15
|
15
87127-968-000
Stripe, l. side
|
87127-968-000 |
— | ||
|
17
|
17
87510-943-000
Label
|
87510-943-000 |
— | ||
|
18
|
18
87541-943-800ZA
Label (type1)
|
87541-943-800ZA |
— | ||
|
19
|
19
92101-06020-0G Bolt, hex. (6x20) |
92101-06020-0G |
from US $0.44 |
||
|
20
|
20
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
21
|
21
94103-06800 WasherPLAIN, 6MM |
94103-06800 |
from US $0.37 |
