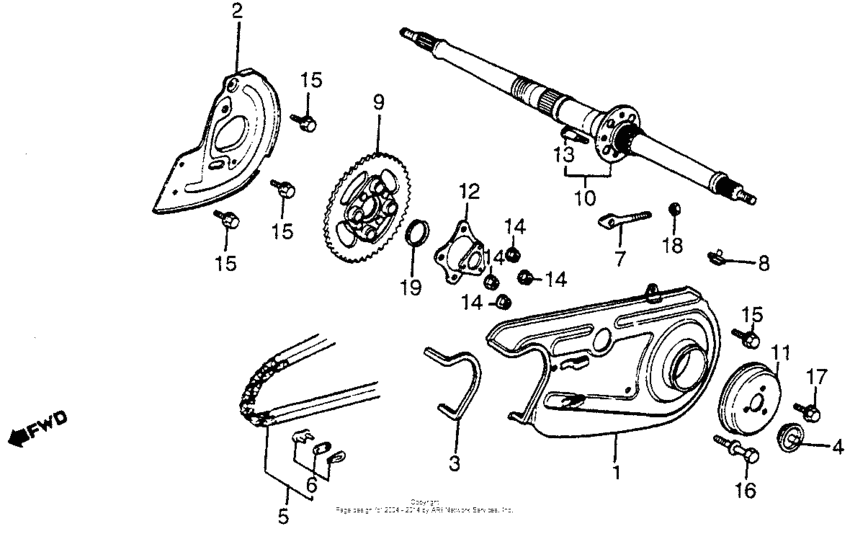

Rear wheel axle + chain case Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1984
- Sales region
- USA
- Frame
- JH3TE010*EC000001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40521-968-680
Case, drive chain
|
40521-968-680 |
— | ||
|
2
|
2
40523-968-680
Cover, sub-chain
|
40523-968-680 |
— | ||
|
3
|
3
40525-918-300
Seal b, chain case
|
40525-918-300 |
— | ||
|
4
|
4
40529-958-010
Cap, chain peep hole
|
40529-958-010 |
— | ||
|
5
|
5
40530-VM6-003
Chain (428v-92)
|
40530-VM6-003 |
— | ||
|
5
|
5
40530-968-000
Chain (428v-92l)
|
40530-968-000 |
— | ||
| replacement | |||||
|
5
|
5
40530-VM6-003
Chain (428v-92)
|
40530-VM6-003 |
— | ||
|
6
|
6
40531-VM6-003
Master link
|
40531-VM6-003 |
— | ||
|
7
|
7
40543-HB3-000 Adjuster, chain |
40543-HB3-000 |
from US $7.85 |
||
|
8
|
8
40545-958-000
Cap, chain
|
40545-958-000 |
— | ||
|
9
|
9
41200-968-000
Sprocket, final
|
41200-968-000 |
— | ||
|
10
|
10
42310-968-000
Axle, rr. wheel
|
42310-968-000 |
— | ||
|
11
|
11
42327-958-000
Plate, shield
|
42327-958-000 |
— | ||
|
12
|
12
42330-958-671
Flange, shield
|
42330-958-671 |
— | ||
|
13
|
13
90128-961-000 Bolt |
90128-961-000 |
US $10.18 |
||
|
14
|
14
90309-428-731 Nut, flange (self-lock) (m8x1.25) |
90309-428-731 |
from US $3.85 |
||
|
15
|
15
93401-060-120-8 Bolt-washer6X12 |
93401-060-120-8 |
from US $0.52 |
||
|
16
|
16
93491-0605508
Bolt-washer (6x55)
|
93491-0605508 |
— | ||
|
17
|
17
93402-060-100-8 Bolt-washer6X10 |
93402-060-100-8 |
from US $0.52 |
||
|
18
|
18
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.41 |
||
|
19
|
19
9456442100
Ring, snap (42mm)
|
9456442100 |
— | ||
