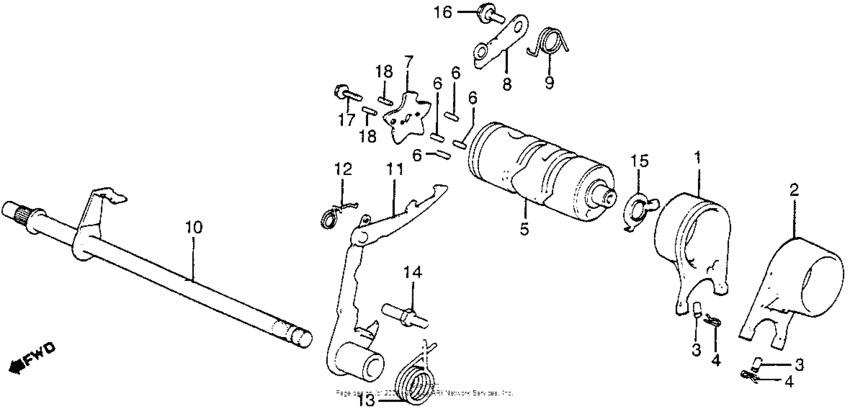

Shift drum Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1984
- Sales region
- USA
- Frame
- JH3TE010*EC000001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24211-028-040 Fork, r. gearshift |
24211-028-040 |
from US $47.18 |
||
|
2
|
2
24221-028-030 Fork, l. gearshift |
24221-028-030 |
US $47.18 |
||
|
3
|
3
24261-121-740 Pin |
24261-121-740 |
from US $2.22 |
||
| replacement | |||||
|
3
|
3
24261-121-742 Pin |
24261-121-742 |
from US $2.22 |
||
|
3
|
3
24261-121-742 Pin |
24261-121-742 |
from US $2.22 |
||
|
4
|
4
24263-028-000 Clip |
24263-028-000 |
from US $2.15 |
||
|
5
|
5
24301-918-010 Drum, gearshift |
24301-918-010 |
US $78.12 |
||
|
6
|
6
24421-230-000 Pin, gearshift drum |
24421-230-000 |
from US $9.18 |
||
|
7
|
7
24425-350-020 Plate |
24425-350-020 |
US $5.77 |
||
|
8
|
8
24430-459-950 Arm |
24430-459-950 |
from US $13.47 |
||
|
9
|
9
24435-051-000 Spring, drum stopper |
24435-051-000 |
US $3.18 |
||
|
10
|
10
24610-968-000
Spindle, gearshift
|
24610-968-000 |
— | ||
|
11
|
11
24630-046-010 Arm, gearshift |
24630-046-010 |
US $23.42 |
||
|
12
|
12
24641-046-000 Spring |
24641-046-000 |
US $3.97 |
||
|
13
|
13
24651-121-710 Spring |
24651-121-710 |
US $4.51 |
||
|
14
|
14
24652-035-000 Pin |
24652-035-000 |
from US $4.04 |
||
|
15
|
15
35753-KG2-951 Rotor |
35753-KG2-951 |
from US $3.11 |
||
|
16
|
16
90023-041-010 Bolt |
90023-041-010 |
from US $3.03 |
||
|
17
|
17
90071-171-010 Bolt, dowel (6mm) |
90071-171-010 |
from US $2.15 |
||
|
18
|
18
9622030085 Roller (3x8.5) |
9622030085 |
from US $0.22 |
||
