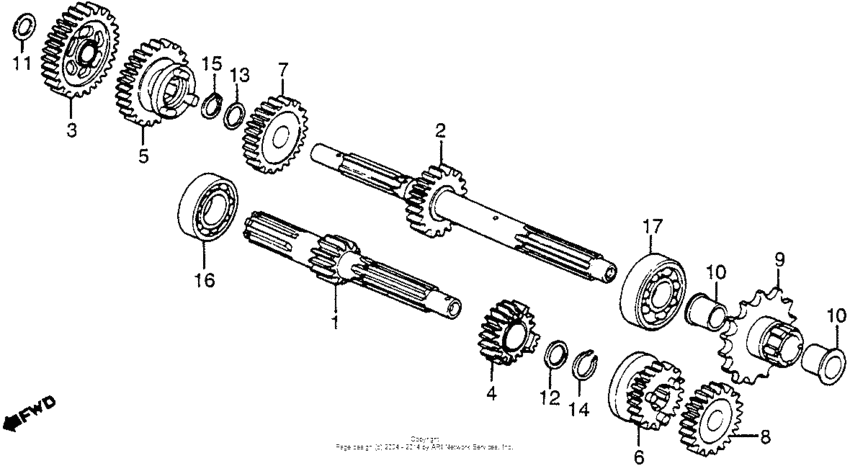

Transmission Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1984
- Sales region
- USA
- Frame
- JH3TE010*EC000001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23211-968-000
Mainshaft, trans
|
23211-968-000 |
— | ||
|
2
|
2
23220-968-000
Countershaft, trans
|
23220-968-000 |
— | ||
|
3
|
3
23421-968-000
Gear
|
23421-968-000 |
— | ||
|
4
|
4
23431-968-000
Gear
|
23431-968-000 |
— | ||
|
5
|
5
23441-968-000
Gear
|
23441-968-000 |
— | ||
|
6
|
6
23451-968-000 Gear (21t) |
23451-968-000 |
from US $46.05 |
||
|
7
|
7
23461-968-000 Gear (25t) |
23461-968-000 |
US $40.53 |
||
|
8
|
8
23471-968-000 Gear (24t) |
23471-968-000 |
US $40 |
||
|
9
|
9
23801-968-000
Sprocket (14t)
|
23801-968-000 |
— | ||
|
10
|
10
23807-459-770
Bush b
|
23807-459-770 |
— | ||
|
11
|
11
90451-121-000 Washer (14mm) |
90451-121-000 |
from US $1.78 |
||
|
12
|
12
90461-028-000 Washer (18mm) |
90461-028-000 |
US $2.44 |
||
|
13
|
13
90461-459-010 Washer (20mm) |
90461-459-010 |
from US $3.18 |
||
|
14
|
14
90601-030-000 Circlip (18mm) |
90601-030-000 |
from US $2.44 |
||
|
15
|
15
90601-459-000 Circlip (20mm) |
90601-459-000 |
from US $3.11 |
||
|
16
|
16
96100-6004000 Bearing, radial ball, 6004 |
96100-6004000 |
from US $6.66 |
||
|
17
|
17
96100-6204000 Bearing, radial ball, 6204 |
96100-6204000 |
from US $6.66 |
