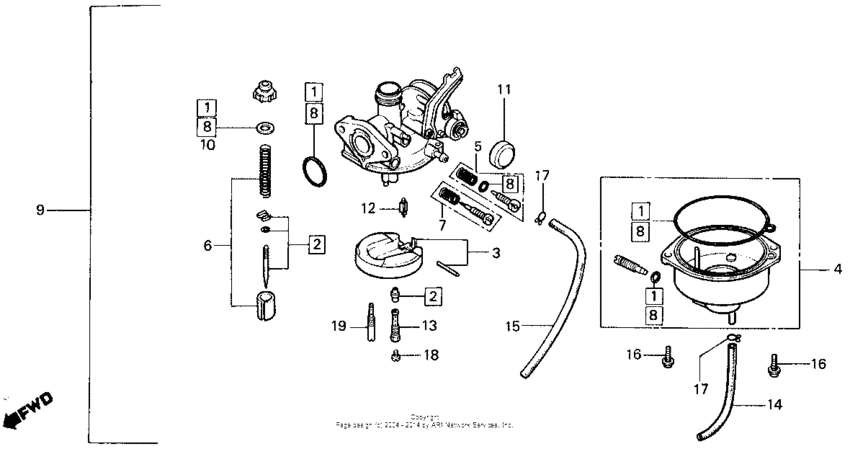

Carburetor Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1986
- Sales region
- USA
- Frame
- JH3TE010*GK200032 - JH3TE010*GK208552
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-943-305 Gasket set |
16010-943-305 |
from US $23.66 |
||
|
2
|
2
16012-HB6-003
Needle set,jet
|
16012-HB6-003 |
— | ||
|
3
|
3
16013-883-005 Float set |
16013-883-005 |
from US $19.31 |
||
|
4
|
4
16015-HB6-013 Chamber set, float |
16015-HB6-013 |
US $77.76 |
||
|
5
|
5
16016-459-761
Screw set,a
|
16016-459-761 |
— | ||
|
6
|
6
16022-HB6-013
Valve set,throttl
|
16022-HB6-013 |
— | ||
|
7
|
7
16028-GC8-004 Screw set b |
16028-GC8-004 |
from US $10.95 |
||
|
9
|
9
16100-HB6-064
Carburetor assy
|
16100-HB6-064 |
— | ||
|
10
|
10
16110-KN4-651 Gasket, top |
16110-KN4-651 |
from US $4.44 |
||
|
11
|
11
16148-141-881 Cap, choke dust |
16148-141-881 |
from US $3.48 |
||
|
12
|
12
16155-168-681 Valve,float |
16155-168-681 |
US $21.22 |
||
|
13
|
13
16165-HB6-003
Jet holder,needle
|
16165-HB6-003 |
— | ||
|
14
|
14
16199-KG4-405 Tube |
16199-KG4-405 |
from US $6.51 |
||
|
15
|
15
16199-943-003
Tube, air vent
|
16199-943-003 |
— | ||
|
16
|
16
93892-040-140-8 Screw-washer4X14 |
93892-040-140-8 |
from US $0.44 |
||
|
17
|
17
9500202650 Clip, tube (b6.5) |
9500202650 |
from US $0.44 |
||
|
18
|
18
99102-GHB0950 Jet, main (#95) |
99102-GHB0950 |
from US $4.88 |
||
|
19
|
19
99103-165-0350 Jet comp,slow #35 |
99103-165-0350 |
from US $6.51 |
