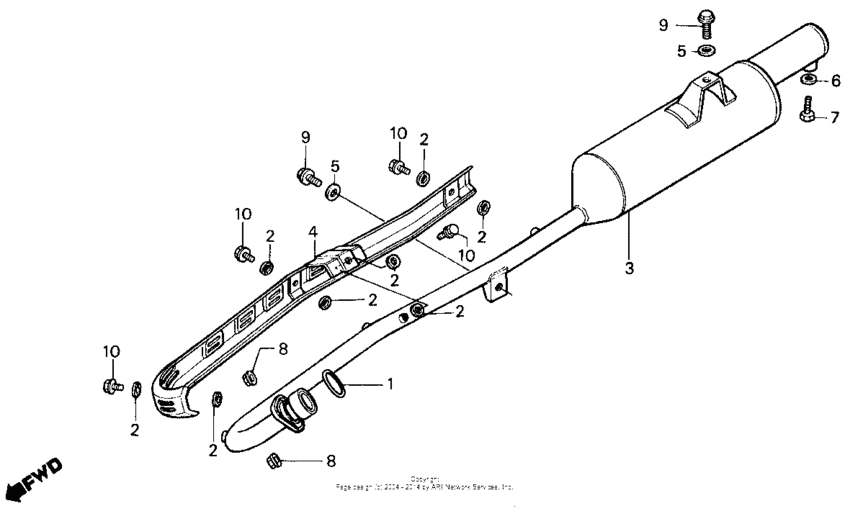

Exhaust muffler Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1986
- Sales region
- USA
- Frame
- JH3TE010*GK200032 - JH3TE010*GK208552
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18291-MN5-650 Gasket, ex. pipe |
18291-MN5-650 |
from US $3.08 |
||
|
2
|
2
18293-MCA-780 Packing, protector |
18293-MCA-780 |
from US $3.92 |
||
|
3
|
3
18300-HB6-010
Muffler comp.,exh
|
18300-HB6-010 |
— | ||
|
4
|
4
18321-HB6-000
Protector,ex.pipe
|
18321-HB6-000 |
— | ||
|
5
|
5
90401-437-000 Washer, plain, 10mm |
90401-437-000 |
from US $2.74 |
||
|
6
|
6
90508-VM6-003
Washer, plain, 10mm
|
90508-VM6-003 |
— | ||
|
7
|
7
92101-10012-0G Bolt, hex. (10x12) |
92101-10012-0G |
US $0.59 |
||
|
8
|
8
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
9
|
9
95701-100-160-8 BoltFLANGE, 10X16 |
95701-100-160-8 |
from US $0.74 |
||
|
10
|
10
96001-0601002 Bolt, flange (6x10) |
96001-0601002 |
from US $0.74 |
