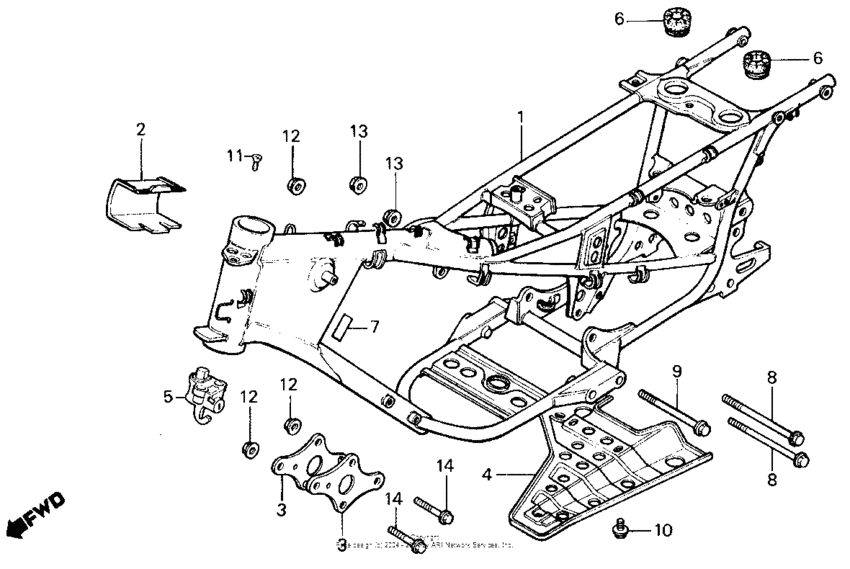

Frame Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1986
- Sales region
- USA
- Frame
- JH3TE010*GK200032 - JH3TE010*GK208552
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50100-HB6-010
Frame
|
50100-HB6-010 |
— | ||
|
2
|
2
50271-HB6-000
Guide, in. air
|
50271-HB6-000 |
— | ||
|
3
|
3
50351-HB6-000
Hanger,fr.eng.
|
50351-HB6-000 |
— | ||
|
4
|
4
50355-HB6-010
Plate, skid
|
50355-HB6-010 |
— | ||
|
5
|
5
53600-HB6-013
Lock assy., handle
|
53600-HB6-013 |
— | ||
|
6
|
6
77207-HA0-000 Rubber, seat setting |
77207-HA0-000 |
from US $4.74 |
||
|
8
|
8
90110-HB6-000
Bolt,flange,10x14
|
90110-HB6-000 |
— | ||
|
9
|
9
90119-VM6-003 Bolt, flange, 8x55 |
90119-VM6-003 |
from US $6.17 |
||
|
10
|
10
90156-964-670
Bolt-washer (8x12)
|
90156-964-670 |
— | ||
|
11
|
11
90164-028-000 Screw (6x12) |
90164-028-000 |
from US $1.92 |
||
|
12
|
12
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
13
|
13
94050-10000 NutFLANGE, 10MM |
94050-10000 |
from US $0.74 |
||
|
14
|
14
96300-080-750-0 Bolt,flange,8x75 |
96300-080-750-0 |
from US $1.04 |
