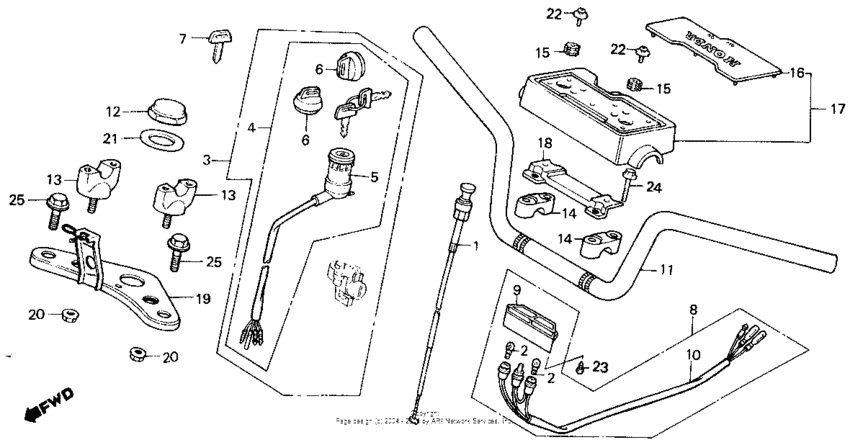

Handlebar + top bridge Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1986
- Sales region
- USA
- Frame
- JH3TE010*GK200032 - JH3TE010*GK208552
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17950-HB6-010
Cable comp,choke
|
17950-HB6-010 |
— | ||
|
2
|
2
34908-MB0-003 Bulb, wedge base (12v 3w) |
34908-MB0-003 |
from US $2.22 |
||
| replacement | |||||
|
2
|
2
34275-S2X-003 Bulb 12V 2.3W Wed |
34275-S2X-003 |
from US $2.22 |
||
|
3
|
3
35010-HB6-020
Key set
|
35010-HB6-020 |
— | ||
|
5
|
5
35010-HB6-671
Lock set
|
35010-HB6-671 |
— | ||
|
6
|
6
35113-VM6-007 Cap |
35113-VM6-007 |
US $6.33 |
||
|
7
|
7
35121-086-811
Key, blank (type 1) (key no. axx / bxx)
(Optional). |
35121-086-811 |
— | ||
| replacement | |||||
|
7
|
7
35121-GW0-731 Key,blank (no.1)(Optional). |
35121-GW0-731 |
from US $6.80 |
||
|
7
|
7
35122-086-811 Key, blank (type 2) (key no. cxx / dxx)(Optional). |
35122-086-811 |
from US $9.08 |
||
| replacement | |||||
|
7
|
7
35122-GW0-731 Key,blank (no.2)(Optional). |
35122-GW0-731 |
from US $9.03 |
||
|
8
|
8
38400-HB6-000
Ind assy.,neutral
|
38400-HB6-000 |
— | ||
|
11
|
11
53100-HB6-000
Pipe,steering han
|
53100-HB6-000 |
— | ||
|
12
|
12
53120-HB6-000
Nut,steering stem
|
53120-HB6-000 |
— | ||
|
13
|
13
53130-HA0-680 Holder, handle |
53130-HA0-680 |
from US $16.32 |
||
|
14
|
14
53131-HB6-000 Holder, handle |
53131-HB6-000 |
from US $12.14 |
||
|
15
|
15
53202-HB3-000
Rubber, handle cover
|
53202-HB3-000 |
— | ||
|
16
|
16
53203-HB3-000
Cover,outer
|
53203-HB3-000 |
— | ||
|
17
|
17
53205-HB3-000
Cover,handle
|
53205-HB3-000 |
— | ||
|
18
|
18
53206-HB6-000
Stay,handle cover
|
53206-HB6-000 |
— | ||
|
19
|
19
53231-HB6-010
Bridge,fork top
|
53231-HB6-010 |
— | ||
|
20
|
20
90304-GE8-003 Nut, u, 10mm |
90304-GE8-003 |
from US $1.94 |
||
|
21
|
21
90482-968-000
Washer
|
90482-968-000 |
— | ||
|
22
|
22
93894-050-200-8 Screw-washer5X20 |
93894-050-200-8 |
from US $0.44 |
||
|
23
|
23
93903-24320 ScrewTAPPING, 4X12 |
93903-24320 |
from US $0.13 |
||
|
24
|
24
95701-080-350-8 BoltFLANGE, 8X35 |
95701-080-350-8 |
from US $0.74 |
||
|
25
|
25
95701-1202000 Bolt, flange (12x20) |
95701-1202000 |
from US $0.89 |
||
