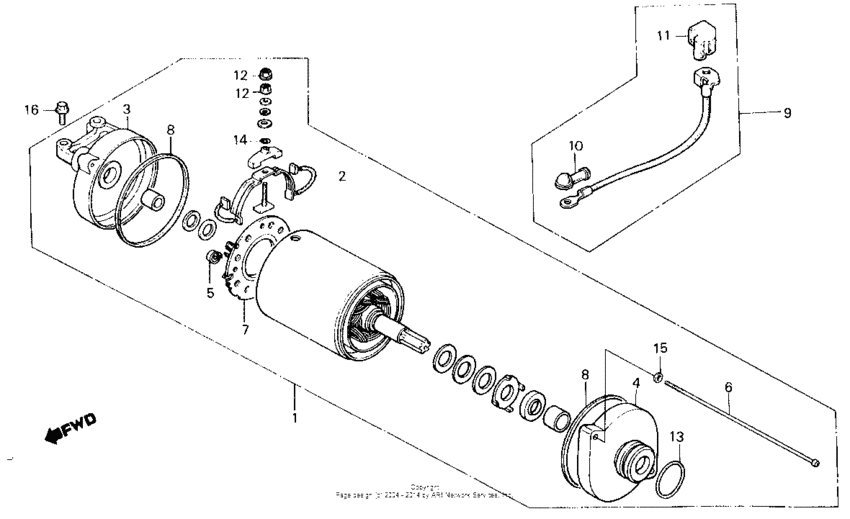

Starting motor Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1986
- Sales region
- USA
- Frame
- JH3TE010*GK200032 - JH3TE010*GK208552
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31200-HB6-405
Motor assy,start
|
31200-HB6-405 |
— | ||
|
2
|
2
31201-KM3-000
Terminal set, brush
|
31201-KM3-000 |
— | ||
|
5
|
5
31204-MA6-000 Spring, carbon brush |
31204-MA6-000 |
from US $3.40 |
||
|
6
|
6
31205-MN4-008 Bolt, setting |
31205-MN4-008 |
from US $3.70 |
||
|
7
|
7
31206-MM5-008 Holder set, brush |
31206-MM5-008 |
from US $22.22 |
||
|
8
|
8
31207-179-711 Ring, seal |
31207-179-711 |
from US $3.70 |
||
|
9
|
9
32402-HB6-000 Cable, starter motor |
32402-HB6-000 |
US $34.07 |
||
|
10
|
10
32411-230-000 Cover |
32411-230-000 |
from US $5.33 |
||
|
11
|
11
32412-HB6-000 Cover |
32412-HB6-000 |
from US $4.27 |
||
|
12
|
12
90071-MB0-000 Nut-washer, 6mm |
90071-MB0-000 |
from US $2.22 |
||
|
13
|
13
91312-MG7-003 O-ring (24.4x3.1) |
91312-MG7-003 |
from US $7.99 |
||
|
14
|
14
91320-MB0-000 O-ring |
91320-MB0-000 |
from US $2.12 |
||
|
15
|
15
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
16
|
16
95801-0602800 Bolt, flange, 6x28 |
95801-0602800 |
from US $0.59 |
