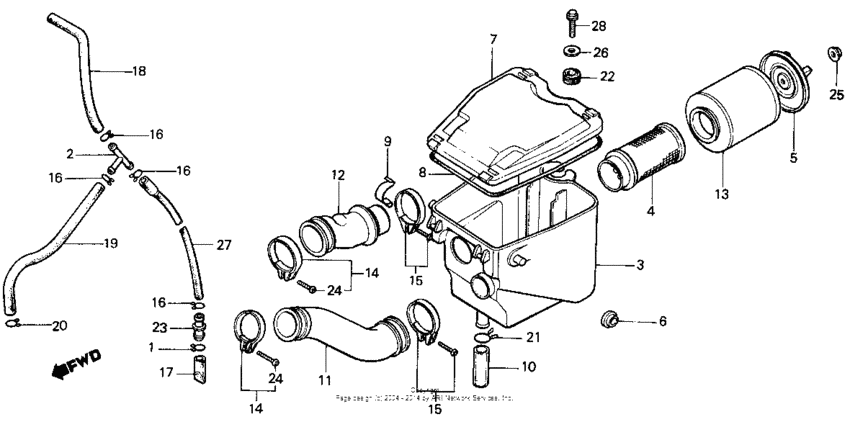

Air cleaner Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1987
- Sales region
- USA
- Frame
- JH3TE010*HK300004 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15772-292-010 Clip, breather tube |
15772-292-010 |
from US $2.44 |
||
|
2
|
2
15772-376-000 Joint |
15772-376-000 |
from US $9.62 |
||
|
3
|
3
17210-HB6-670
Housing, air cleaner
|
17210-HB6-670 |
— | ||
|
4
|
4
17211-HB3-770
Body,air cleaner
|
17211-HB3-770 |
— | ||
|
5
|
5
17212-HB3-000
Plate comp.,rr.
|
17212-HB3-000 |
— | ||
|
6
|
6
17216-HA5-000
Rubber
|
17216-HA5-000 |
— | ||
|
7
|
7
17217-HB3-000
Lid,air cleaner c
|
17217-HB3-000 |
— | ||
|
8
|
8
17222-MN4-405 Seal |
17222-MN4-405 |
from US $6.51 |
||
|
9
|
9
17223-HB3-003 Spring, a/clnr ld st |
17223-HB3-003 |
from US $4.74 |
||
|
10
|
10
17224-HB3-000 Tube |
17224-HB3-000 |
US $11.08 |
||
| replacement | |||||
|
10
|
10
17224-HM5-930 Tube |
17224-HM5-930 |
from US $11.25 |
||
|
10
|
10
17224-HM5-930 Tube |
17224-HM5-930 |
from US $11.25 |
||
|
11
|
11
17251-HB6-000
Tube
|
17251-HB6-000 |
— | ||
|
12
|
12
17253-HB6-010
Tube,air/c conn.
|
17253-HB6-010 |
— | ||
|
13
|
13
17254-HB3-770 Element,air clean |
17254-HB3-770 |
from US $23.24 |
||
|
14
|
14
17255-HB3-010
Band, a/clnr tube
|
17255-HB3-010 |
— | ||
|
15
|
15
9501856200 Band (56) |
9501856200 |
from US $3.42 |
||
|
16
|
16
17316-611-000 Clip, breather tube |
17316-611-000 |
from US $2.29 |
||
|
17
|
17
17358-HM8-000 Tube, drain |
17358-HM8-000 |
from US $5.18 |
||
|
18
|
18
17561-HB6-000
Tube a, breather
|
17561-HB6-000 |
— | ||
|
19
|
19
17562-HB6-000
Tube, breather
|
17562-HB6-000 |
— | ||
|
20
|
20
17724-102-700 ClipSUB TANK HOSE |
17724-102-700 |
from US $2.44 |
||
|
21
|
21
18532-634-670 ClipAIR HOSE, 21.5 |
18532-634-670 |
from US $3.03 |
||
|
22
|
22
61103-430-000 Rubber, fr |
61103-430-000 |
from US $4.59 |
||
|
23
|
23
91463-393-780 Joint, tube |
91463-393-780 |
from US $1.92 |
||
|
24
|
24
93500-050280G Screw, pan, 5x28 |
93500-050280G |
from US $0.44 |
||
|
25
|
25
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
26
|
26
90404-680-000 Washer6.5X25X1.5 |
90404-680-000 |
US $7.48 |
||
|
27
|
27
95005-120-0120M
Bulk hose (12x1000)
|
95005-120-0120M |
— | ||
|
28
|
28
95700-060-100-8 BoltFLANGE, 6X10 |
95700-060-100-8 |
US $24.80 |
||
| replacement | |||||
|
28
|
28
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
28
|
28
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
