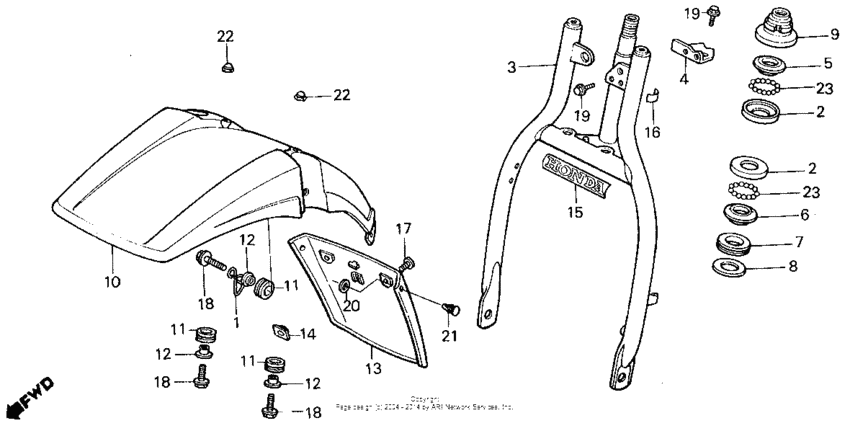

Front fender + front fork Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1987
- Sales region
- USA
- Frame
- JH3TE010*HK300004 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45467-HB6-010
Guide,brake cable
|
45467-HB6-010 |
— | ||
|
2
|
2
50301-041-010 Race |
50301-041-010 |
from US $7.70 |
||
|
3
|
3
51400-HB6-670
Fork comp.,fr.
|
51400-HB6-670 |
— | ||
|
5
|
5
53211-028-010 Race, steering cone |
53211-028-010 |
from US $7.55 |
||
|
6
|
6
53212-030-010 Race, steering cone |
53212-030-010 |
from US $7.40 |
||
|
7
|
7
53214-001-010 Dust seal |
53214-001-010 |
from US $2.44 |
||
| replacement | |||||
|
7
|
7
53214-GJG-C20 DUST SEAL |
53214-GJG-C20 |
from US $2.69 |
||
|
8
|
8
53215-GF8-000 Washer, dust seal |
53215-GF8-000 |
from US $2.44 |
||
|
9
|
9
53220-098-670 Thread |
53220-098-670 |
from US $10.21 |
||
|
10
|
10
61100-HB6-010ZA
Fend,fr *r-109*
|
61100-HB6-010ZA |
— | ||
|
11
|
11
61103-430-000 Rubber, fr |
61103-430-000 |
from US $4.59 |
||
|
12
|
12
61104-444-000 Collar,fend.mtg. |
61104-444-000 |
from US $7.10 |
||
|
13
|
13
61111-HB6-010
Mud guard,front
|
61111-HB6-010 |
— | ||
|
14
|
14
61304-HB3-003 Nut, special, 6mm |
61304-HB3-003 |
from US $3.07 |
||
|
15
|
15
87102-958-010
Emblem, fr. fork
|
87102-958-010 |
— | ||
|
17
|
17
90102-HB6-000 Screw, mudguard |
90102-HB6-000 |
from US $4 |
||
|
17
|
17
90120-HA7-670 Screw, mudguard |
90120-HA7-670 |
from US $7.31 |
||
|
18
|
18
90108-MJ1-000 Bolt,flange,6x25 |
90108-MJ1-000 |
from US $2.74 |
||
|
20
|
20
90501-310-000 Washer (7x12) |
90501-310-000 |
from US $2.07 |
||
|
21
|
21
90801-HB6-000
Clip, anchor
|
90801-HB6-000 |
— | ||
|
22
|
22
9402106020 Nut, cap (6mm) |
9402106020 |
from US $0.74 |
||
|
23
|
23
96211-06000 BallSTEEL, #6(3/16) |
96211-06000 |
from US $0.15 |
||
