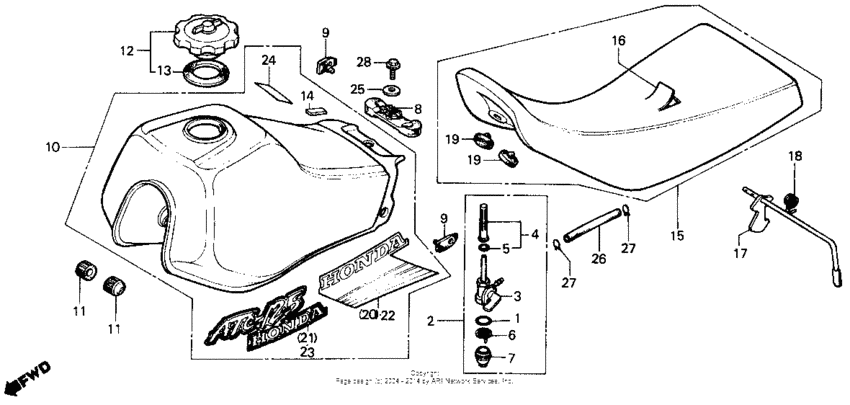

Fuel tank Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1987
- Sales region
- USA
- Frame
- JH3TE010*HK300004 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16173-001-004 Packing, fuel strainer cup |
16173-001-004 |
from US $2.34 |
||
|
2
|
2
16950-195-702 Cock assy.,fuel |
16950-195-702 |
from US $65.14 |
||
|
3
|
3
16951-195-701
Body comp.,cock
|
16951-195-701 |
— | ||
|
4
|
4
16952-GB2-721
Screen,fuel strai
|
16952-GB2-721 |
— | ||
|
5
|
5
16958-397-771 O-ring, 9.0x1.3 |
16958-397-771 |
from US $7 |
||
|
6
|
6
16959-471-831 Filter, cup |
16959-471-831 |
from US $11.41 |
||
|
7
|
7
16967-GA6-671 Cup, fuel strainer |
16967-GA6-671 |
from US $11.61 |
||
|
8
|
8
17509-437-000 Rubber,tank rr. |
17509-437-000 |
US $13.91 |
||
|
9
|
9
17517-HB6-000
Rubber,tank guard
|
17517-HB6-000 |
— | ||
|
10
|
10
17520-HB6-670ZA
Tank sub a*r-109*
|
17520-HB6-670ZA |
— | ||
|
11
|
11
17611-HB6-000
Rubber, fr
|
17611-HB6-000 |
— | ||
|
12
|
12
17620-HC3-505
Cap comp.,fuel ta
|
17620-HC3-505 |
— | ||
|
13
|
13
17632-435-730 Gasket |
17632-435-730 |
from US $8.88 |
||
|
14
|
14
61703-HB3-300 Rubber |
61703-HB3-300 |
US $3.67 |
||
|
15
|
15
77100-HB6-P00
Seat comp
|
77100-HB6-P00 |
— | ||
|
16
|
16
77101-HB6-P00
Cover comp., seat
|
77101-HB6-P00 |
— | ||
|
17
|
17
77105-HB6-010
Lever, seat lock
|
77105-HB6-010 |
— | ||
|
18
|
18
77107-HB6-010
Spring, seat lock
|
77107-HB6-010 |
— | ||
|
19
|
19
77211-MB0-000 Rubber, seat stopper |
77211-MB0-000 |
from US $5.21 |
||
|
21
|
21
87123-HB6-670
Stripe,r.fuel tan
|
87123-HB6-670 |
— | ||
|
23
|
23
87124-HB6-670
Stripe,l.fuel tan
|
87124-HB6-670 |
— | ||
|
24
|
24
87504-HB6-670
Label, use caution
|
87504-HB6-670 |
— | ||
|
25
|
25
90136-428-870 Washer, tank setting |
90136-428-870 |
from US $2.37 |
||
|
26
|
26
95001-450-0360M Bulk hose (4.5x3000) |
95001-450-0360M |
from US $17.68 |
||
|
27
|
27
95002-02080 ClipTUBE(B8) |
95002-02080 |
from US $0.44 |
||
|
28
|
28
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
