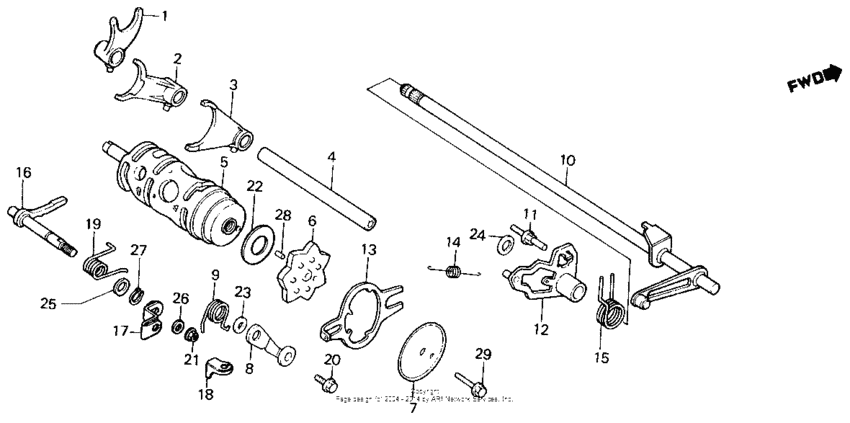

Gearshift drum + gearshift fork Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1987
- Sales region
- USA
- Frame
- JH3TE010*HK300004 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24211-HB6-000 Fork, r. gearshift |
24211-HB6-000 |
US $55.76 |
||
|
2
|
2
24212-HB6-000
Fork
|
24212-HB6-000 |
— | ||
|
3
|
3
24213-HB6-000
Fork,l.gearshift
|
24213-HB6-000 |
— | ||
|
4
|
4
24241-KCZ-000 Shaft |
24241-KCZ-000 |
US $32.27 |
||
|
4
|
4
24241-MC0-000 Shaft |
24241-MC0-000 |
US $32.27 |
||
|
5
|
5
24301-HB6-010
Drum, gearshift
|
24301-HB6-010 |
— | ||
|
6
|
6
24321-HB3-030
Shifter, drum
|
24321-HB3-030 |
— | ||
|
7
|
7
24328-HB3-000 Plate, shift guide |
24328-HB3-000 |
from US $5.77 |
||
|
8
|
8
24430-HB6-000
Stopr comp,gr/sif
|
24430-HB6-000 |
— | ||
|
9
|
9
24436-HB6-000
Spring,drum stopp
|
24436-HB6-000 |
— | ||
|
10
|
10
24610-HB6-000
Spndl comp,gr/sf
|
24610-HB6-000 |
— | ||
|
11
|
11
24615-KA4-000
Pin, return spring
|
24615-KA4-000 |
— | ||
|
12
|
12
24620-HB6-000
Arm
|
24620-HB6-000 |
— | ||
|
13
|
13
24631-HM8-A40 Plate, gearshift |
24631-HM8-A40 |
from US $14.50 |
||
|
14
|
14
24641-HB3-004 Spring, shift arm |
24641-HB3-004 |
from US $2.22 |
||
|
15
|
15
24651-HF1-670
Spring
|
24651-HF1-670 |
— | ||
|
16
|
16
24860-HB6-010
Shaft
|
24860-HB6-010 |
— | ||
|
17
|
17
24865-HB6-000
Lever rvs.stopper
|
24865-HB6-000 |
— | ||
|
18
|
18
24866-HB6-010 Holder, reverse wireUse up to Engine SN 2302281 |
24866-HB6-010 |
from US $6.79 |
||
|
18
|
18
24866-HC3-000
Holder, reverse wire
Use from Engine SN 2302282 |
24866-HC3-000 |
— | ||
|
19
|
19
24867-HB6-010 Spg.rvs.stopper |
24867-HB6-010 |
US $5.85 |
||
|
20
|
20
90023-041-010 Bolt |
90023-041-010 |
from US $3.03 |
||
|
21
|
21
90301-473-003 Nut, u, 6mm |
90301-473-003 |
from US $4.74 |
||
|
22
|
22
90405-HB6-000
Washer,34x42x1
|
90405-HB6-000 |
— | ||
|
23
|
23
90417-360-000 Washer, drum stopper |
90417-360-000 |
from US $2.22 |
||
|
24
|
24
90451-GF6-000 Washer, thrust, 12mm |
90451-GF6-000 |
from US $2.15 |
||
|
25
|
25
90453-HB3-000
Washer, thrust (9x1)
|
90453-HB3-000 |
— | ||
|
26
|
26
90502-HB3-000 Washer (6mm) |
90502-HB3-000 |
from US $2.66 |
||
|
27
|
27
90601-147-000
Circlip (9mm)
|
90601-147-000 |
— | ||
|
28
|
28
9622040138 Roller (4x13.8) |
9622040138 |
from US $0.22 |
||
|
29
|
29
96300-0602000 Bolt, flange (6x20) |
96300-0602000 |
from US $0.59 |
