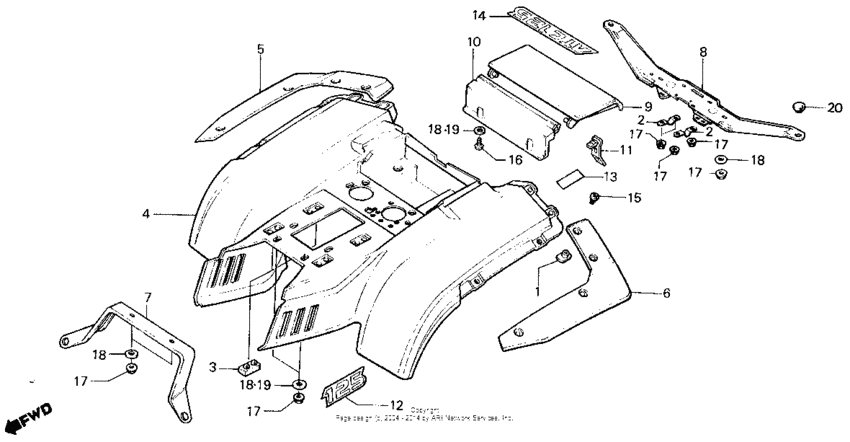

Rear fender Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1987
- Sales region
- USA
- Frame
- JH3TE010*HK300004 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61304-HB3-003 Nut, special, 6mm |
61304-HB3-003 |
from US $3.07 |
||
|
2
|
2
77106-HB6-000
Bracket,lock leve
|
77106-HB6-000 |
— | ||
|
3
|
3
77204-HB6-000
Rubber,seat setti
|
77204-HB6-000 |
— | ||
|
4
|
4
80110-HB6-010ZA
Fender,rr.*r-109*
|
80110-HB6-010ZA |
— | ||
|
5
|
5
80111-HB6-010
Mud guard,rr r
|
80111-HB6-010 |
— | ||
|
6
|
6
80112-HB6-010
Mud guard rr.l
|
80112-HB6-010 |
— | ||
|
7
|
7
80116-HB6-670
Stay,fender sprt
|
80116-HB6-670 |
— | ||
|
8
|
8
80121-HB6-010
Stay, rr.
|
80121-HB6-010 |
— | ||
|
9
|
9
80211-HB6-010ZA
Lid,tool b*r-109*
|
80211-HB6-010ZA |
— | ||
|
10
|
10
80212-HB6-000
Cover,tool box
|
80212-HB6-000 |
— | ||
|
11
|
11
80214-HM5-850 Band, tool box |
80214-HM5-850 |
from US $3.37 |
||
|
13
|
13
87505-HB6-670
Mark, tire caution
|
87505-HB6-670 |
— | ||
|
14
|
14
87527-HB6-670
Mark, tool box
|
87527-HB6-670 |
— | ||
|
15
|
15
90102-HB6-000 Screw, mudguard |
90102-HB6-000 |
from US $4 |
||
|
15
|
15
90120-HA7-670 Screw, mudguard |
90120-HA7-670 |
from US $7.31 |
||
|
16
|
16
93901-26320 Screw, tap (6x20) |
93901-26320 |
US $0.68 |
||
|
17
|
17
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
19
|
19
94103-06800 WasherPLAIN, 6MM |
94103-06800 |
from US $0.37 |
||
|
20
|
20
9501163000 Rubber c, stand stopper |
9501163000 |
from US $1.63 |
