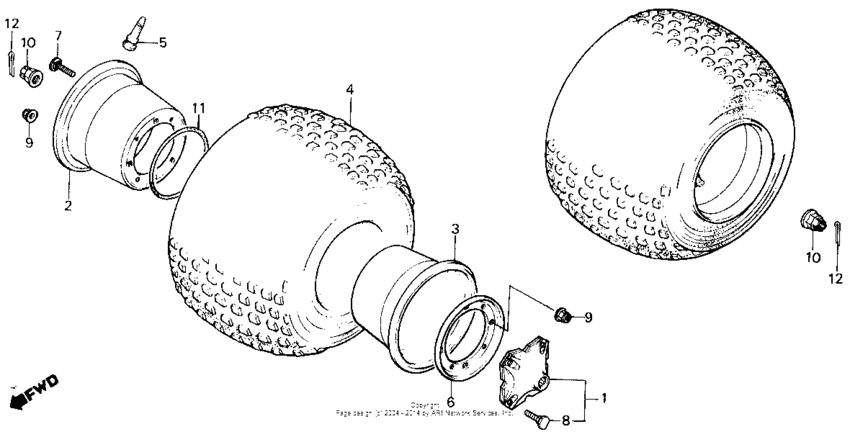

Rear wheel Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1987
- Sales region
- USA
- Frame
- JH3TE010*HK300004 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42410-VM6-000
Hub comp,rr wheel
|
42410-VM6-000 |
— | ||
|
2
|
2
42712-HB6-000
Rim,outer
|
42712-HB6-000 |
— | ||
|
3
|
3
42713-HB6-000
Rim,inner
|
42713-HB6-000 |
— | ||
|
4
|
4
42750-VM6-681
Tire (22x11-8 pa-3)
|
42750-VM6-681 |
— | ||
|
4
|
4
42751-961-811
Tire (22x11-8)
(Optional). |
42751-961-811 |
— | ||
|
5
|
5
42753-VM0-003 Valve, rim |
42753-VM0-003 |
from US $10.06 |
||
|
6
|
6
44714-VM6-000
Patch,support pl.
|
44714-VM6-000 |
— | ||
|
7
|
7
90101-VM6-000 Bolt,wheel |
90101-VM6-000 |
US $5.76 |
||
|
8
|
8
90103-VM6-300 Bolt, wheel (8x20) |
90103-VM6-300 |
from US $4.88 |
||
|
9
|
9
90304-GE8-003 Nut, u, 10mm |
90304-GE8-003 |
from US $1.94 |
||
|
10
|
10
90305-HB6-000
Nut,axle,18mm
|
90305-HB6-000 |
— | ||
|
11
|
11
91351-958-670 O-ring (160x4.2) |
91351-958-670 |
from US $13.72 |
||
|
12
|
12
9420140400 Pin, split, 4.0x40 |
9420140400 |
from US $0.44 |
