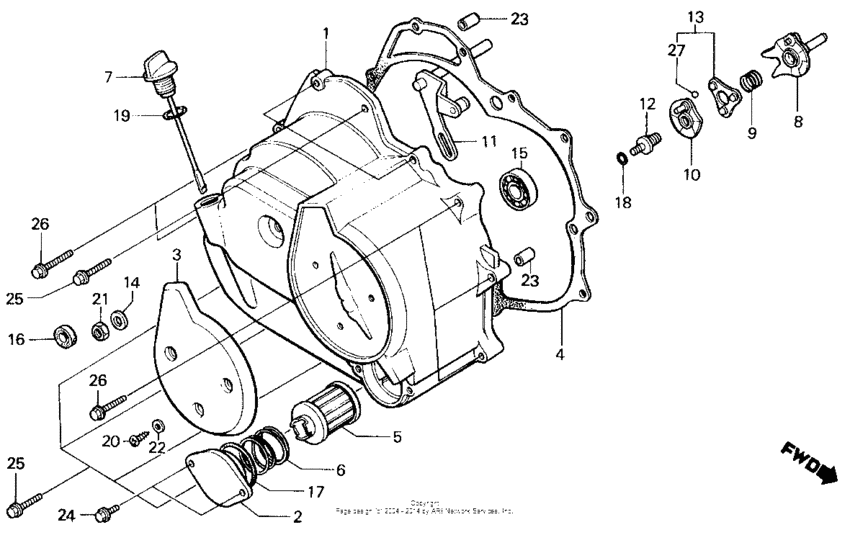

Right crankcase cover Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1987
- Sales region
- USA
- Frame
- JH3TE010*HK300004 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11330-HB6-020
Cover, r. crankcase
Use up to Engine SN 2300091 |
11330-HB6-020 |
— | ||
|
2
|
2
11333-HB6-000
Cover, oil filter
|
11333-HB6-000 |
— | ||
|
3
|
3
11335-HB6-010
Protector
|
11335-HB6-010 |
— | ||
|
4
|
4
11393-HB6-306 Gasket, r |
11393-HB6-306 |
US $10.51 |
||
|
5
|
5
15412-HB6-003 Element, oil filter |
15412-HB6-003 |
from US $9.18 |
||
|
6
|
6
15414-HB6-000 Spring, oil filter |
15414-HB6-000 |
from US $3.77 |
||
|
7
|
7
15650-HC3-000
Gauge oil level
Use up to Engine SN 2302281 |
15650-HC3-000 |
— | ||
|
8
|
8
22820-HB6-000
Plate, clutch cam
|
22820-HB6-000 |
— | ||
|
9
|
9
22825-HB3-003 Spring |
22825-HB3-003 |
from US $2.37 |
||
|
10
|
10
22830-HB6-000 Plate, clutch lifter |
22830-HB6-000 |
from US $12.18 |
||
|
11
|
11
22840-HC3-000
Sub-lever
Use up to Engine SN 2302281 |
22840-HC3-000 |
— | ||
|
12
|
12
22846-HB3-000 Bolt, clutch adj |
22846-HB3-000 |
from US $4.59 |
||
|
13
|
13
22860-HB3-000 Retainer, ball |
22860-HB3-000 |
from US $6.02 |
||
|
14
|
14
90485-040-000 Washer (8mm) |
90485-040-000 |
from US $1.92 |
||
|
15
|
15
91009-HB6-004
Brg,ball 12x32x10
|
91009-HB6-004 |
— | ||
|
16
|
16
91204-HB3-004 Oil seal (9x18x5) |
91204-HB3-004 |
from US $3.70 |
||
|
17
|
17
91302-HB6-003 O-ring (2.6x38.6) |
91302-HB6-003 |
from US $3.26 |
||
|
18
|
18
91306-HB3-003 O-ring (8x1.7) |
91306-HB3-003 |
from US $2.15 |
||
|
19
|
19
91307-KF0-003 O-ring (18x3) |
91307-KF0-003 |
from US $1.42 |
||
|
20
|
20
93901-36280 Screw, tap (6x16) |
93901-36280 |
from US $0.44 |
||
|
21
|
21
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
22
|
22
94101-05700 WasherPLAIN, 5MM |
94101-05700 |
from US $0.37 |
||
|
23
|
23
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
24
|
24
96001-060-160-0 BoltFLANGE, 6X16 |
96001-060-160-0 |
from US $0.41 |
||
|
25
|
25
96001-060-350-0 Bolt, flange, 6x35 |
96001-060-350-0 |
from US $0.74 |
||
|
26
|
26
96001-060-400-0 BoltFLANGE, 6X40 |
96001-060-400-0 |
from US $0.74 |
||
|
27
|
27
96211-10000 Ball |
96211-10000 |
from US $0.22 |
