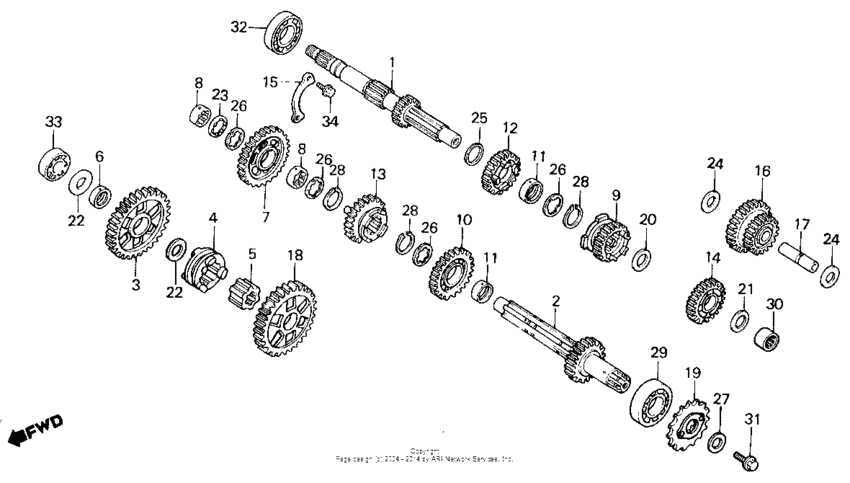

Transmission Diagram Honda ATC ATC125
- Model code
- ATC125M A
- Engine Capacity
- 125
- Year
- 1987
- Sales region
- USA
- Frame
- JH3TE010*HK300004 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23211-HB6-000
Mainshaft,trans
|
23211-HB6-000 |
— | ||
|
2
|
2
23220-HB6-000 Countshaft comp |
23220-HB6-000 |
US $146.12 |
||
|
3
|
3
23411-HB6-670
Gear (39t)
|
23411-HB6-670 |
— | ||
|
4
|
4
23412-HB6-010
Shifter rvs s.l g
|
23412-HB6-010 |
— | ||
|
5
|
5
23413-HB6-010
Collar, spline
|
23413-HB6-010 |
— | ||
|
6
|
6
23414-HB6-000
Bush,count/sf gr
|
23414-HB6-000 |
— | ||
|
7
|
7
23431-HB6-670
Gear,countershaft
|
23431-HB6-670 |
— | ||
|
8
|
8
23432-HB6-000
Count/sf 2 gear
|
23432-HB6-000 |
— | ||
|
9
|
9
23441-HB6-672 Gear,m-3rdUse up to Engine SN 2302281 |
23441-HB6-672 |
US $61.40 |
||
|
10
|
10
23451-HB6-010
Gear,countershaft
Use up to Engine SN 2302281 |
23451-HB6-010 |
— | ||
|
11
|
11
23452-HC3-000
Bush 20x8
Use up to Engine SN 2302281 |
23452-HC3-000 |
— | ||
|
12
|
12
23461-HB6-000
Gr,main/sf 4
|
23461-HB6-000 |
— | ||
|
13
|
13
23471-HB6-671 Gear,c-4Use up to Engine SN 2302281 |
23471-HB6-671 |
US $82.09 |
||
|
14
|
14
23481-HB6-010
Gear,m-5
|
23481-HB6-010 |
— | ||
|
15
|
15
23521-HB6-000
Plate,brg.set
|
23521-HB6-000 |
— | ||
|
16
|
16
23721-HB6-000
Gear (18/31t)
|
23721-HB6-000 |
— | ||
|
17
|
17
23731-HC3-000
Shaft, reverse idle
Use up to Engine SN 2302281 |
23731-HC3-000 |
— | ||
|
18
|
18
23751-HB6-010
Gear
|
23751-HB6-010 |
— | ||
|
19
|
19
23800-HB6-000
Sprocket,comp.dri
|
23800-HB6-000 |
— | ||
|
20
|
20
90401-HB6-000 Washer (15mm) |
90401-HB6-000 |
US $2.58 |
||
|
21
|
21
90402-HB6-000 Washer (15x29) |
90402-HB6-000 |
US $5.97 |
||
|
22
|
22
90412-187-000 Washer, thrust, 15mm |
90412-187-000 |
from US $2.74 |
||
|
23
|
23
90421-HB6-000
Washer, lock (20mm)
|
90421-HB6-000 |
— | ||
|
24
|
24
90451-HB3-000 Washer, thrust, 13x27x1 |
90451-HB3-000 |
US $5.15 |
||
|
25
|
25
90454-107-000 Washer, thrust, 20mm |
90454-107-000 |
from US $2.15 |
||
|
26
|
26
90461-444-000 Washer (20mm) |
90461-444-000 |
from US $2.52 |
||
|
27
|
27
90465-MC4-000 Washer, 8mm |
90465-MC4-000 |
from US $2.59 |
||
|
28
|
28
90601-459-000 Circlip (20mm) |
90601-459-000 |
from US $3.11 |
||
|
29
|
29
91004-KW3-004 Bearing (62/22) |
91004-KW3-004 |
from US $14.50 |
||
|
30
|
30
91106-383-003 BearingNEEDLE, 15MM |
91106-383-003 |
from US $12.73 |
||
|
31
|
31
95700-0801600 Bolt, flange, 8x16 |
95700-0801600 |
from US $0.59 |
||
| replacement | |||||
|
31
|
31
95701-0801600 Bolt, flange, 8x16 |
95701-0801600 |
from US $0.62 |
||
|
31
|
31
95701-0801600 Bolt, flange, 8x16 |
95701-0801600 |
from US $0.62 |
||
|
32
|
32
96100-6004000 Bearing, radial ball, 6004 |
96100-6004000 |
from US $6.66 |
||
|
33
|
33
96100-6202000 Bearing, radial ball, 6202 |
96100-6202000 |
from US $4.88 |
||
|
34
|
34
96300-0601400 Bolt, flange (6x14) |
96300-0601400 |
from US $0.59 |
||
