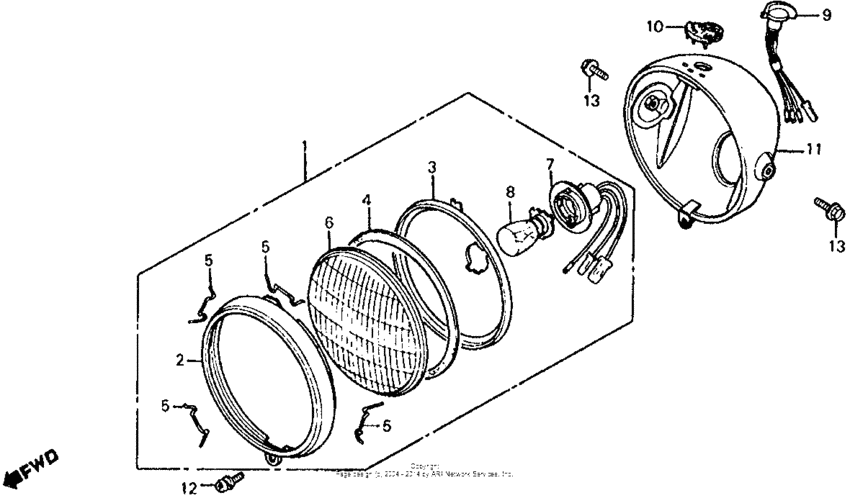

Atc185 headlight 80 Diagram Honda ATC ATC185
- Model code
- ATC185 A
- Engine Capacity
- 185
- Year
- 1980
- Sales region
- USA
- Frame
- TB012000013 - TB012027332
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC185
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-958-003
Headlight assy
|
33100-958-003 |
— | ||
|
2
|
2
33101-229-003 Rim, head light |
33101-229-003 |
US $35.56 |
||
|
3
|
3
33104-364-691
Reflector, headlight
|
33104-364-691 |
— | ||
|
4
|
4
33105-070-000 Packing head |
33105-070-000 |
US $4.29 |
||
|
5
|
5
33108-229-003 Spring,unitholder |
33108-229-003 |
US $2.66 |
||
|
6
|
6
33121-229-003 Lens,head light |
33121-229-003 |
US $23.26 |
||
|
7
|
7
33120-292-673
Unit head light
|
33120-292-673 |
— | ||
|
8
|
8
34901-HC3-003 Bulb (12v45/45w) |
34901-HC3-003 |
from US $6.94 |
||
|
9
|
9
35100-943-003
Switch,lighting
|
35100-943-003 |
— | ||
|
10
|
10
35102-958-000
Base
|
35102-958-000 |
— | ||
|
11
|
11
61301-958-003ZA
Case *r23*
|
61301-958-003ZA |
— | ||
|
12
|
12
93892-050-120-8 Screw-washer5X12 |
93892-050-120-8 |
from US $0.44 |
||
|
13
|
13
95701-0801600 Bolt, flange, 8x16 |
95701-0801600 |
from US $0.62 |
