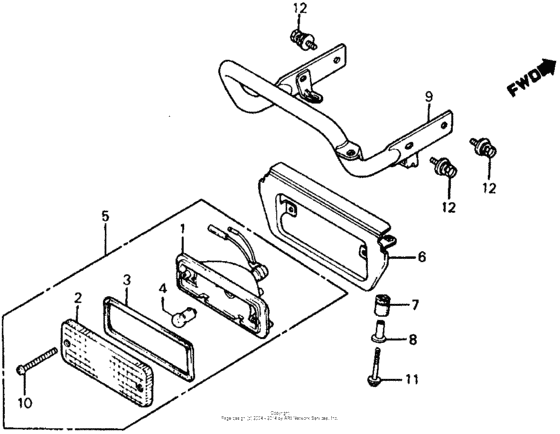

Atc185s taillight 81-83 Diagram Honda ATC ATC185
- Model code
- ATC185S A
- Engine Capacity
- 185
- Year
- 1983
- Sales region
- USA
- Frame
- JH3TB010*DC300013 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC185
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33300-958-013
Housing comp
|
33300-958-013 |
— | ||
|
2
|
2
33302-958-013 Lens, taillight |
33302-958-013 |
from US $14.08 |
||
|
3
|
3
33303-958-003
Gasket
|
33303-958-003 |
— | ||
|
4
|
4
34910-504-003
Bulb (12v5w)
|
34910-504-003 |
— | ||
|
5
|
5
33700-968-003
Taillight assy.
|
33700-968-003 |
— | ||
|
6
|
6
33705-958-670
Bracket,taillight
|
33705-958-670 |
— | ||
|
7
|
7
33731-958-670
Rubber
|
33731-958-670 |
— | ||
|
8
|
8
33732-958-671
Collar
|
33732-958-671 |
— | ||
|
9
|
9
81200-958-671
Pipe, carrier
|
81200-958-671 |
— | ||
|
10
|
10
93901-448J0 ScrewTAPPING, 4X35 |
93901-448J0 |
US $0.67 |
||
|
11
|
11
93482-0603508 Bolt-washer (6x35) |
93482-0603508 |
from US $0.59 |
||
|
12
|
12
93403-080-200-8 Bolt-washer8X20 |
93403-080-200-8 |
from US $0.74 |
