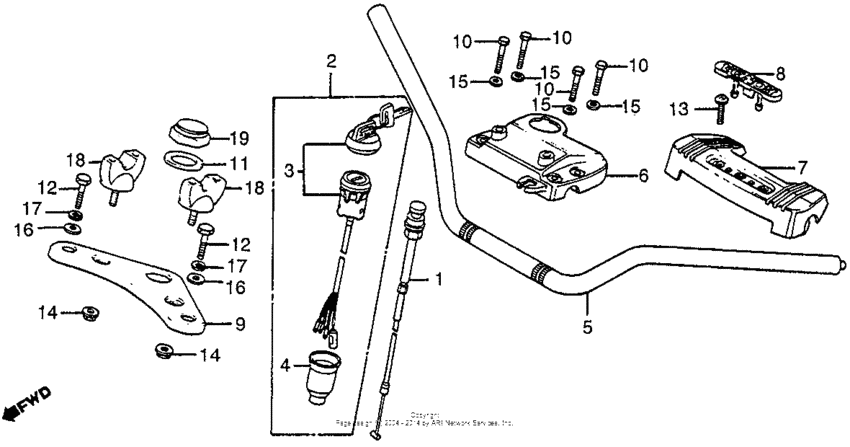

Handlebar + top bridge Diagram Honda ATC ATC200
- Model code
- ATC200E A
- Engine Capacity
- 200
- Year
- 1982
- Sales region
- USA
- Frame
- JH3TB051*CC133783 - JH3TB051*CC174752
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC200
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17950-958-680
Cable.,choke
|
17950-958-680 |
— | ||
|
2
|
2
35010-958-680
Lock set
|
35010-958-680 |
— | ||
|
3
|
3
35010-958-680
Lock set
|
35010-958-680 |
— | ||
|
4
|
4
35105-958-680 Cover |
35105-958-680 |
US $5.18 |
||
|
5
|
5
53100-958-670
Pipe,strg.handle
|
53100-958-670 |
— | ||
|
6
|
6
53131-958-680
Holder, handlebar
|
53131-958-680 |
— | ||
|
9
|
9
53231-958-680
Bridge,fork top
|
53231-958-680 |
— | ||
|
10
|
10
90117-065-000 Bolt hex 6x28 |
90117-065-000 |
from US $2.96 |
||
|
11
|
11
90503-958-000
Washer,strg.stem
|
90503-958-000 |
— | ||
|
12
|
12
92101-12025-0A Bolt, hex. (12x25) |
92101-12025-0A |
from US $0.89 |
||
|
14
|
14
94050-10080 NutFLANGE, 10MM |
94050-10080 |
from US $0.74 |
||
|
15
|
15
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
16
|
16
94101-12000 WasherPLAIN, 12MM |
94101-12000 |
from US $0.52 |
||
|
17
|
17
94111-12000 WasherSPRING, 12MM |
94111-12000 |
from US $0.44 |
||
|
18
|
18
9501432100 Holder b1, handlebar |
9501432100 |
from US $7.70 |
||
|
19
|
19
90304-159-000 Nut, steering stem |
90304-159-000 |
from US $6.22 |
