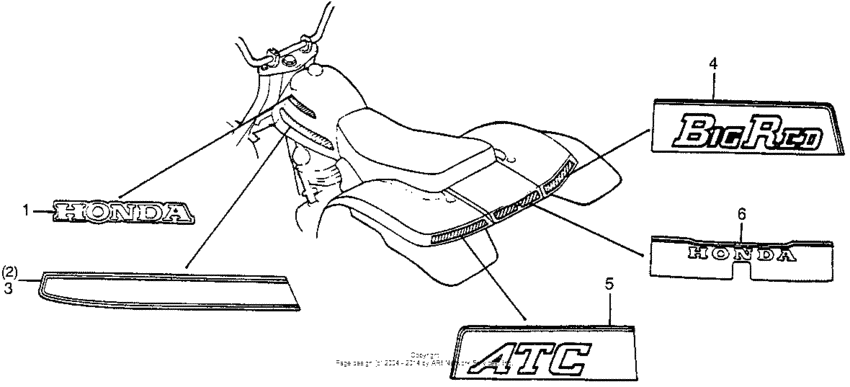

Stripe + emblem 82 Diagram Honda ATC ATC200
- Model code
- ATC200E A
- Engine Capacity
- 200
- Year
- 1982
- Sales region
- USA
- Frame
- JH3TB051*CC133783 - JH3TB051*CC174752
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC200
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87121-958-680
Emblem,fuel tank
|
87121-958-680 |
— | ||
|
2
|
2
87123-958-680
Stripe, r. fuel tank
|
87123-958-680 |
— | ||
|
3
|
3
87124-958-680
Stripe, l. fuel tank
|
87124-958-680 |
— | ||
|
4
|
4
87521-958-680
Emb, r. rr. fender
|
87521-958-680 |
— | ||
|
5
|
5
87525-958-680
Emb, l. rr. fender
|
87525-958-680 |
— | ||
|
6
|
6
87527-958-680
Emblem, tool box
|
87527-958-680 |
— |
