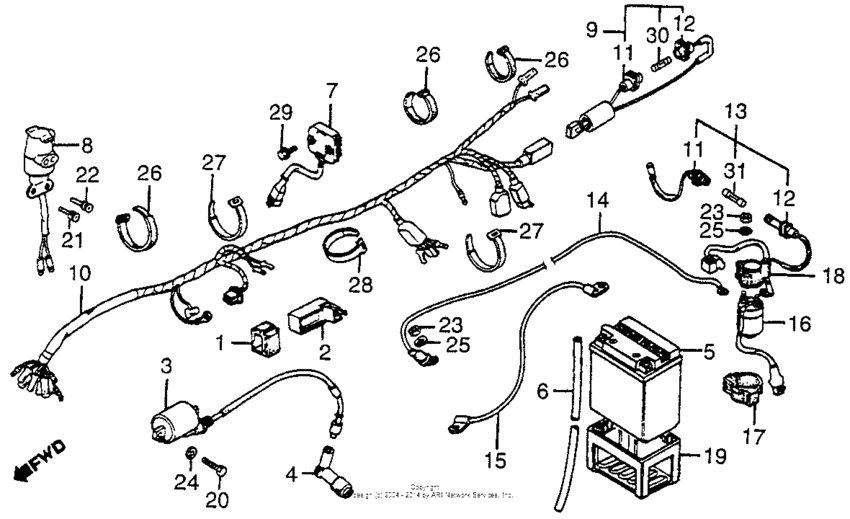

Wire harness Diagram Honda ATC ATC200
- Model code
- ATC200E A
- Engine Capacity
- 200
- Year
- 1982
- Sales region
- USA
- Frame
- JH3TB051*CC133783 - JH3TB051*CC174752
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30401-GB4-770 Cushion.cdi unit |
30401-GB4-770 |
from US $7.10 |
||
|
2
|
2
30410-187-008
C.d.i. unit
|
30410-187-008 |
— | ||
|
3
|
3
30500-VM3-405 Coil assy (cdi)ig |
30500-VM3-405 |
from US $92.85 |
||
|
4
|
4
30700-152-163 Cap assy. |
30700-152-163 |
from US $17.41 |
||
| replacement | |||||
|
4
|
4
30700-KE2-942 Cap, spark plug |
30700-KE2-942 |
from US $21.78 |
||
|
5
|
5
31500-958-682AH Battery (yb14a-a2) |
31500-958-682AH |
US $94.21 |
||
|
6
|
6
31502-958-680
Pipe, breather
|
31502-958-680 |
— | ||
|
7
|
7
31600-958-682
Rectifier,reg,
|
31600-958-682 |
— | ||
|
10
|
10
32100-958-680
Wire harness
|
32100-958-680 |
— | ||
|
11
|
11
32106-253-010
Connector a,fuse
|
32106-253-010 |
— | ||
|
12
|
12
32112-253-010 Connector b,fuse |
32112-253-010 |
US $4.31 |
||
|
13
|
13
32401-958-681
Cable,start.bat.
|
32401-958-681 |
— | ||
|
14
|
14
32402-VM5-000
Cable,start motor
|
32402-VM5-000 |
— | ||
|
15
|
15
32601-958-680
Cabl batery earth
|
32601-958-680 |
— | ||
|
16
|
16
35850-HA8-771 Switch assy.,stat |
35850-HA8-771 |
US $92.31 |
||
|
17
|
17
35856-425-000 Rubber |
35856-425-000 |
from US $5.92 |
||
|
18
|
18
35857-415-000
Cover,magnetic sw
|
35857-415-000 |
— | ||
|
19
|
19
50334-958-681
Rubber, battery
|
50334-958-681 |
— | ||
|
20
|
20
93492-050-250-8
Bolt-washer (5x25)
|
93492-050-250-8 |
— | ||
|
23
|
23
94002-060-000-S NutHEX., 6MM |
94002-060-000-S |
from US $0.44 |
||
|
24
|
24
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
25
|
25
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
26
|
26
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.73 |
||
|
28
|
28
9501461300 Band a3, cable |
9501461300 |
from US $1.18 |
||
|
29
|
29
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
31
|
31
9820010700 Fuse a (7a) |
9820010700 |
from US $0.59 |
||
