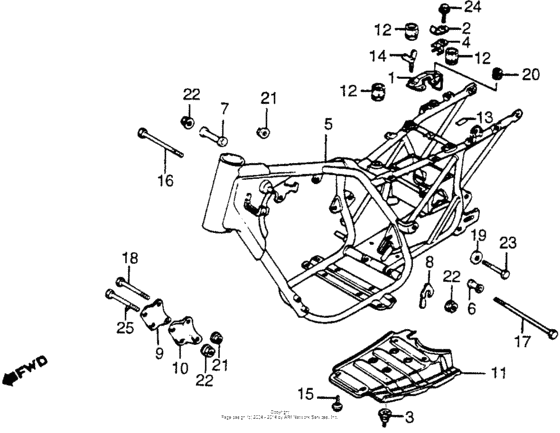

Frame Diagram Honda ATC ATC200
- Model code
- ATC200M A
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Frame
- JH3TB054*EC300005 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31512-958-680
Holder batery box
|
31512-958-680 |
— | ||
|
2
|
2
32111-323-000 Clamp, cable |
32111-323-000 |
from US $5.18 |
||
|
3
|
3
32111-680-300 GrommetRR. HARNESS (BLACK) |
32111-680-300 |
from US $7.42 |
||
|
4
|
4
38251-958-680
Hanger, fuse case
|
38251-958-680 |
— | ||
|
5
|
5
50100-VM3-000 Frame |
50100-VM3-000 |
US $4,725.26 |
||
|
6
|
6
50250-958-680
Collar, l
|
50250-958-680 |
— | ||
|
7
|
7
50252-958-680
Collar, r
|
50252-958-680 |
— | ||
|
8
|
8
50253-958-680
Washer, eng hgr
|
50253-958-680 |
— | ||
|
9
|
9
50351-958-680
Hanger.r.engine
|
50351-958-680 |
— | ||
|
10
|
10
50352-958-680
Hanger,l.engine
|
50352-958-680 |
— | ||
|
11
|
11
50355-VM3-000
Plate, skid
|
50355-VM3-000 |
— | ||
|
12
|
12
77207-HA0-000 Rubber, seat setting |
77207-HA0-000 |
from US $4.74 |
||
|
13
|
13
87136-VM3-000
Label, main fuse
|
87136-VM3-000 |
— | ||
|
14
|
14
90105-958-405
Bolt, wing
|
90105-958-405 |
— | ||
|
15
|
15
90118-958-003 Bolt, flange, 6x12 |
90118-958-003 |
from US $3.70 |
||
|
16
|
16
90125-958-000 Bolt,hex.,10x115 |
90125-958-000 |
US $9.83 |
||
|
17
|
17
90135-958-000 Bolt,hex.,10x240 |
90135-958-000 |
US $14.35 |
||
|
18
|
18
90157-437-000 Bolt, hex., 8x85 |
90157-437-000 |
from US $4.24 |
||
|
19
|
19
90509-642-000 WasherPLAIN, 8.5X22X2.3 |
90509-642-000 |
from US $2.81 |
||
|
20
|
20
90852-898-000 Rubber, control box |
90852-898-000 |
from US $2.52 |
||
|
21
|
21
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
22
|
22
94050-10000 NutFLANGE, 10MM |
94050-10000 |
from US $0.74 |
||
|
23
|
23
95301-080-600-0 Bolt, hex. (8x60) |
95301-080-600-0 |
from US $0.74 |
||
|
24
|
24
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
25
|
25
95801-100-800-0 Bolt, flange (10x80) |
95801-100-800-0 |
from US $1.18 |
