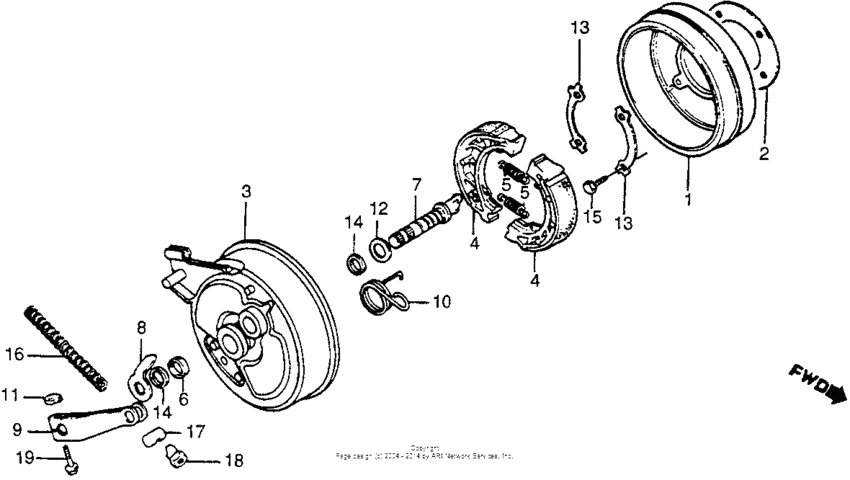

Front brake panel Diagram Honda ATC ATC200
- Model code
- ATC200M A
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Frame
- JH3TB054*EC300005 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44602-VM3-000
Drum, brake
|
44602-VM3-000 |
— | ||
|
2
|
2
44603-VM3-000
Gasket, brake drum
|
44603-VM3-000 |
— | ||
|
3
|
3
45010-VM3-000 Panel, fr. brake |
45010-VM3-000 |
US $162.13 |
||
|
4
|
4
06450-178-932 Shoe set, brake |
06450-178-932 |
from US $33.07 |
||
|
5
|
5
45133-028-000 Spring, brake shoe |
45133-028-000 |
from US $2.15 |
||
|
6
|
6
45134-250-000 Dust seal, brake cam |
45134-250-000 |
from US $2.15 |
||
|
7
|
7
45141-968-680 Cam, fr. brake |
45141-968-680 |
US $25.40 |
||
|
8
|
8
45145-968-000
Indicator, brake
|
45145-968-000 |
— | ||
|
9
|
9
45410-VM3-000
Superceded
|
45410-VM3-000 |
— | ||
| replacement | |||||
|
9
|
9
45410-VM3-680
Arm, fr. brake
|
45410-VM3-680 |
— | ||
|
10
|
10
45435-968-000
Spring, fr
|
45435-968-000 |
— | ||
|
11
|
11
45436-001-000 Nut, fr. brake arm setting |
45436-001-000 |
from US $2.22 |
||
|
12
|
12
90451-115-000 Washer, 14.2mm |
90451-115-000 |
from US $3.11 |
||
|
13
|
13
90514-VM3-000
Washer,tongued
|
90514-VM3-000 |
— | ||
|
14
|
14
91208-611-005 Dust seal14X20X4 (NOK) |
91208-611-005 |
from US $2.74 |
||
|
15
|
15
92101-08020-0H BoltHEX., 8X20 |
92101-08020-0H |
from US $0.52 |
||
|
16
|
16
9501473100 Spring a, brake rod |
9501473100 |
from US $0.74 |
||
|
17
|
17
9501532001 Joint b, brake arm |
9501532001 |
from US $0.74 |
||
|
18
|
18
9501542000 Nut b, brake rod adjusting |
9501542000 |
from US $1.48 |
||
|
19
|
19
95700-060-250-8 BoltFLANGE, 6X25 |
95700-060-250-8 |
US $27.50 |
||
| replacement | |||||
|
19
|
19
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
19
|
19
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
