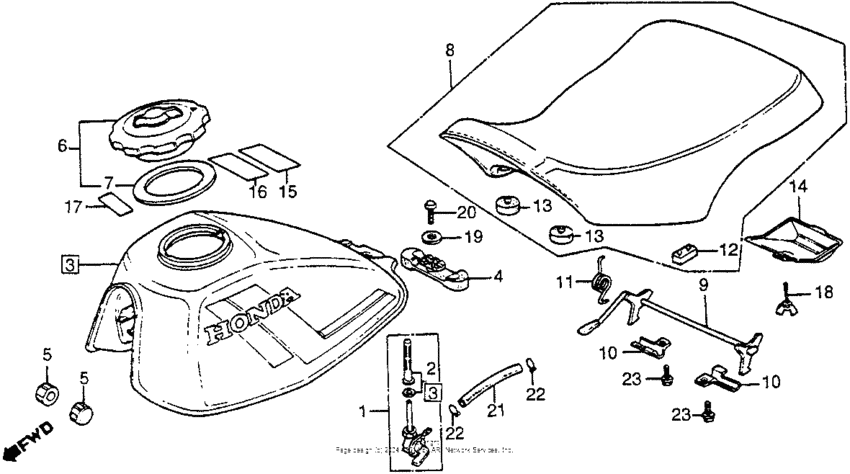

Fuel tank + seat Diagram Honda ATC ATC200
- Model code
- ATC200M A
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Frame
- JH3TB054*EC300005 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16950-149-025 Cock assy.,fuel |
16950-149-025 |
from US $50.42 |
||
|
2
|
2
16952-GB2-721
Screen,fuel strai
|
16952-GB2-721 |
— | ||
|
3
|
3
175A1-VM3-680ZA
Tank, fuel *r109*
|
175A1-VM3-680ZA |
— | ||
|
4
|
4
17509-437-000 Rubber,tank rr. |
17509-437-000 |
US $13.91 |
||
|
5
|
5
17611-437-000 Rubber, fr. tank |
17611-437-000 |
from US $3.92 |
||
|
6
|
6
17620-HC3-505
Cap comp.,fuel ta
|
17620-HC3-505 |
— | ||
|
7
|
7
17631-899-000 Packing, fuel filler cap |
17631-899-000 |
US $8.16 |
||
| replacement | |||||
|
7
|
7
17631-899-010 Packing, fuel filler cap |
17631-899-010 |
US $3.70 |
||
|
8
|
8
77100-VM3-681
Seat comp
|
77100-VM3-681 |
— | ||
|
9
|
9
77105-VM3-000
Lever, seat lock
|
77105-VM3-000 |
— | ||
|
10
|
10
77106-958-000
Brkt lock lever
|
77106-958-000 |
— | ||
|
11
|
11
77107-958-000 Spring, seat lock |
77107-958-000 |
US $6.82 |
||
|
12
|
12
77204-292-000 Rubber, seat setting |
77204-292-000 |
from US $6.81 |
||
|
13
|
13
77215-GC2-000 Rubber b |
77215-GC2-000 |
from US $3.42 |
||
|
14
|
14
83501-958-680
Holder,tool
|
83501-958-680 |
— | ||
|
15
|
15
87135-958-680
Label decompresio
|
87135-958-680 |
— | ||
|
16
|
16
87504-130-720ZA
Label *nh1*
|
87504-130-720ZA |
— | ||
|
17
|
17
87560-181-760ZB
Label *nh1* (typew)
|
87560-181-760ZB |
— | ||
|
18
|
18
90105-958-405
Bolt, wing
|
90105-958-405 |
— | ||
|
19
|
19
90504-567-000
Washer
|
90504-567-000 |
— | ||
|
20
|
20
92101-06012-0H BoltHEX., 6X12 |
92101-06012-0H |
from US $0.44 |
||
|
21
|
21
95001-450-0360M Bulk hose (4.5x3000) |
95001-450-0360M |
from US $17.68 |
||
|
22
|
22
95002-02080 ClipTUBE(B8) |
95002-02080 |
from US $0.44 |
||
|
23
|
23
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
