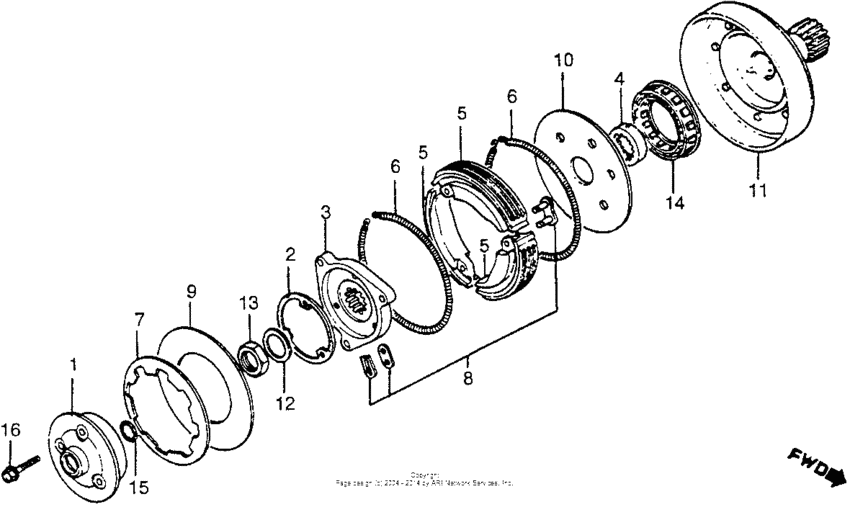

One-way clutch Diagram Honda ATC ATC200
- Model code
- ATC200M A
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Frame
- JH3TB054*EC300005 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15436-958-000
Cap,oil filter
|
15436-958-000 |
— | ||
|
2
|
2
15459-KE4-770
Gasket, oil filter
|
15459-KE4-770 |
— | ||
|
3
|
3
22451-958-010
Hub a,clutch
|
22451-958-010 |
— | ||
|
4
|
4
22453-958-000
Collar,one way
|
22453-958-000 |
— | ||
|
5
|
5
22461-KE4-771
Shoe, clutch
|
22461-KE4-771 |
— | ||
|
6
|
6
22462-958-000
Spring,clutch
|
22462-958-000 |
— | ||
|
7
|
7
22463-958-000
Spg,side friction
|
22463-958-000 |
— | ||
|
8
|
8
22464-958-010 Link,connecting |
22464-958-010 |
US $4.01 |
||
| replacement | |||||
|
8
|
8
40531-355-013 Master link |
40531-355-013 |
from US $6.56 |
||
|
8
|
8
40531-355-013 Master link |
40531-355-013 |
from US $6.56 |
||
|
9
|
9
22470-958-010 Plate a,clutch |
22470-958-010 |
US $13.90 |
||
|
10
|
10
22480-958-010
Clutch b,plate
|
22480-958-010 |
— | ||
|
11
|
11
22500-958-010
Drum comp.,clutch
|
22500-958-010 |
— | ||
|
12
|
12
23926-PB6-010 WasherSPRING, 22MM |
23926-PB6-010 |
from US $5.62 |
||
|
13
|
13
90201-PB6-000 NutFLANGE, 22MM |
90201-PB6-000 |
from US $10.22 |
||
| replacement | |||||
|
13
|
13
90201-PB6-020 NutFLANGE, 22MM |
90201-PB6-020 |
from US $6.16 |
||
|
13
|
13
90201-PB6-010 NutFLANGE, 22MM |
90201-PB6-010 |
from US $8.82 |
||
| replacement | |||||
|
13
|
13
90201-PB6-020 NutFLANGE, 22MM |
90201-PB6-020 |
from US $6.16 |
||
|
14
|
14
91101-958-003 Clutch, one-way |
91101-958-003 |
from US $73.44 |
||
|
15
|
15
91306-329-000 O-ring (16x1.9) |
91306-329-000 |
from US $3.26 |
||
|
16
|
16
95700-060-250-8 BoltFLANGE, 6X25 |
95700-060-250-8 |
US $27.50 |
||
| replacement | |||||
|
16
|
16
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
16
|
16
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
