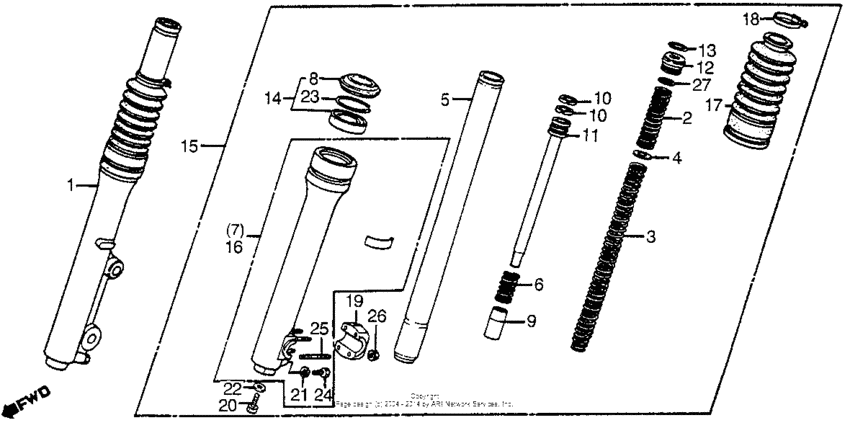

Front shock absorber Diagram Honda ATC ATC200
- Model code
- ATC200S A
- Engine Capacity
- 200
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TB053*FK400004 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51400-VM4-003
Fork assy r.front
|
51400-VM4-003 |
— | ||
|
2
|
2
51401-958-003
Spg.,fr.cushion
|
51401-958-003 |
— | ||
|
3
|
3
51402-VM4-003
Spring.b.fr.cush
|
51402-VM4-003 |
— | ||
|
4
|
4
51403-961-003
Plate,springjoint
|
51403-961-003 |
— | ||
|
5
|
5
51410-VM4-003
Pipe,front fork
|
51410-VM4-003 |
— | ||
|
6
|
6
51412-369-000 Spring,fr.rebound |
51412-369-000 |
from US $5.03 |
||
|
7
|
7
51420-958-672
Case, r. (lower)
|
51420-958-672 |
— | ||
|
8
|
8
51425-961-013 Dust seal |
51425-961-013 |
from US $9.92 |
||
|
9
|
9
51432-447-731 Piece, oil locking |
51432-447-731 |
from US $14.21 |
||
|
10
|
10
51437-413-003 Ring,piston |
51437-413-003 |
from US $6.07 |
||
|
11
|
11
51440-958-003
Pipe,seat
|
51440-958-003 |
— | ||
|
12
|
12
51454-958-003
Seat b,spring
|
51454-958-003 |
— | ||
|
13
|
13
51456-355-003 Ring,stopper |
51456-355-003 |
from US $6.07 |
||
|
14
|
14
51490-GS9-305 Seal set, fr. fork |
51490-GS9-305 |
from US $19.45 |
||
|
15
|
15
51500-VM4-003
Fork assy l.front
|
51500-VM4-003 |
— | ||
|
16
|
16
51520-958-672
Case, l. (lower)
|
51520-958-672 |
— | ||
|
17
|
17
51611-958-003
Boot,fr.fork
|
51611-958-003 |
— | ||
|
18
|
18
51612-428-900 Band, fr. fork boot |
51612-428-900 |
from US $9.92 |
||
|
19
|
19
51634-MA0-003 Holder, axle |
51634-MA0-003 |
from US $17.41 |
||
|
20
|
20
90116-383-721 Bolt, socket (8mm) |
90116-383-721 |
from US $3.85 |
||
|
21
|
21
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.15 |
||
|
22
|
22
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $2.52 |
||
|
23
|
23
90601-GF5-731 Ring |
90601-GF5-731 |
from US $2.44 |
||
|
24
|
24
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
25
|
25
92900-06025-0E Bolt, stud (6x25) |
92900-06025-0E |
from US $0.59 |
||
|
26
|
26
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
27
|
27
94608-40000 O ring 19.4x2.8 |
94608-40000 |
from US $0.98 |
