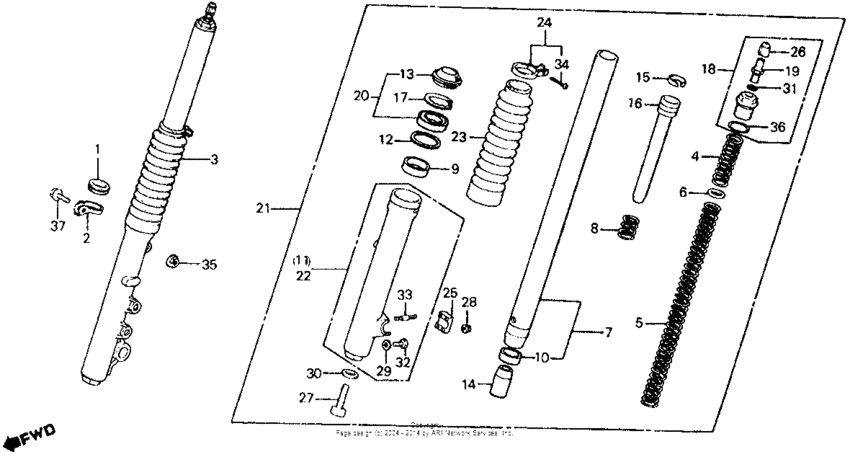

Front shock absorber Diagram Honda ATC ATC200
- Model code
- ATC200X A
- Engine Capacity
- 200
- Year
- 1983
- Sales region
- USA
- Frame
- JH3TB052*DC263800 - JH3TB052*DC340134
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45466-329-000 Guide, cable (inner) |
45466-329-000 |
from US $4.04 |
||
|
2
|
2
45467-428-000
Guide a brk cable
|
45467-428-000 |
— | ||
|
3
|
3
51400-965-003
Fork assy.,r.fr.
|
51400-965-003 |
— | ||
|
4
|
4
51401-965-003
Spring, fr. fork
|
51401-965-003 |
— | ||
|
5
|
5
51402-965-003
Spring b, fr. fork
|
51402-965-003 |
— | ||
|
6
|
6
51403-965-003
Seat, spring
|
51403-965-003 |
— | ||
|
6
|
6
90504-356-000
Washer,16mm
|
90504-356-000 |
— | ||
|
7
|
7
51410-965-003
Pipe,fr.fork
|
51410-965-003 |
— | ||
|
8
|
8
51412-340-000 Spring, fr |
51412-340-000 |
from US $4.14 |
||
|
9
|
9
51414-447-731 Bush, guide |
51414-447-731 |
from US $11.99 |
||
|
10
|
10
51415-447-731 Bush,slider |
51415-447-731 |
from US $13.24 |
||
|
11
|
11
51420-965-003
Case, r. (lower)
|
51420-965-003 |
— | ||
|
12
|
12
51422-376-305
Ring, back-up
|
51422-376-305 |
— | ||
|
13
|
13
51425-473-003 Dust seal |
51425-473-003 |
from US $14.80 |
||
|
14
|
14
51432-447-731 Piece, oil locking |
51432-447-731 |
from US $14.21 |
||
|
15
|
15
51437-400-771 Ring, piston |
51437-400-771 |
from US $4.30 |
||
|
16
|
16
51440-965-003 Pipe, seat |
51440-965-003 |
US $64.20 |
||
|
17
|
17
51447-447-731 Circlop internal |
51447-447-731 |
from US $3.91 |
||
|
18
|
18
51450-KB9-003
Bolt assy,fr fork
|
51450-KB9-003 |
— | ||
|
19
|
19
51456-469-013 Valve, air |
51456-469-013 |
US $41.09 |
||
|
20
|
20
51490-473-305 Seal set, fr. fork |
51490-473-305 |
from US $25.57 |
||
|
21
|
21
51500-965-003
Fork,l.fr.
|
51500-965-003 |
— | ||
|
22
|
22
51520-965-003
Case, l. (lower)
|
51520-965-003 |
— | ||
|
23
|
23
51611-965-003
Boot, fr. fork
|
51611-965-003 |
— | ||
|
24
|
24
51612-428-900 Band, fr. fork boot |
51612-428-900 |
from US $9.92 |
||
|
25
|
25
51634-MA0-003 Holder, axle |
51634-MA0-003 |
from US $17.41 |
||
|
26
|
26
52425-381-771 Cap, air valve |
52425-381-771 |
from US $4.59 |
||
|
27
|
27
90116-383-721 Bolt, socket (8mm) |
90116-383-721 |
from US $3.85 |
||
|
28
|
28
94050-06070 Nut |
94050-06070 |
from US $0.52 |
||
|
29
|
29
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.15 |
||
|
30
|
30
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $2.52 |
||
|
31
|
31
91305-323-000 O-ring, 5.8x1.9 |
91305-323-000 |
from US $2.22 |
||
|
31
|
31
91318-ME5-003 O-ring, 5.6x1.9 (arai) |
91318-ME5-003 |
from US $3.18 |
||
|
32
|
32
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
33
|
33
92900-06025-0E Bolt, stud (6x25) |
92900-06025-0E |
from US $0.59 |
||
|
34
|
34
93500-030200G Screw, pan (3x20) |
93500-030200G |
from US $0.37 |
||
|
35
|
35
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
36
|
36
9460850000 O-ring, 23x2.8 |
9460850000 |
from US $0.89 |
||
|
37
|
37
95701-060-160-7 BoltFLANGE, 6X16 |
95701-060-160-7 |
from US $0.58 |
