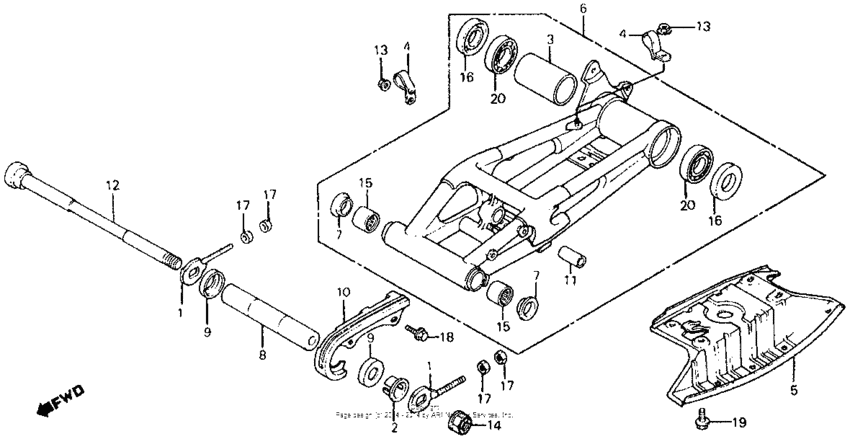

Swingarm + engine protector 83 Diagram Honda ATC ATC200
- Model code
- ATC200X A
- Engine Capacity
- 200
- Year
- 1983
- Sales region
- USA
- Frame
- JH3TB052*DC263800 - JH3TB052*DC340134
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40543-965-000 Adjuster,chain |
40543-965-000 |
US $11.87 |
||
|
2
|
2
42340-965-010
Collar,swing arm
|
42340-965-010 |
— | ||
|
3
|
3
42621-961-000
Collar,rr.axle
|
42621-961-000 |
— | ||
|
4
|
4
43311-965-000 Clamp, brake hose |
43311-965-000 |
from US $5.62 |
||
|
5
|
5
50355-965-000ZA
Pl,skid*nh-105*
|
50355-965-000ZA |
— | ||
|
6
|
6
52000-965-000ZA
Swingarm *nh35m*
|
52000-965-000ZA |
— | ||
|
7
|
7
52109-430-300 Bush, pivot thrust |
52109-430-300 |
from US $13.17 |
||
|
8
|
8
52141-KA2-000
Collar,rr.fork
|
52141-KA2-000 |
— | ||
|
9
|
9
52144-356-005 Cap, dust seal |
52144-356-005 |
from US $14.21 |
||
|
10
|
10
52170-965-010
Slider,chain
|
52170-965-010 |
— | ||
|
11
|
11
52451-HA5-000
Bush,damper lower
|
52451-HA5-000 |
— | ||
|
12
|
12
90117-965-000
Bolt,swing arm
|
90117-965-000 |
— | ||
|
13
|
13
90301-473-003 Nut, u, 6mm |
90301-473-003 |
from US $4.74 |
||
|
14
|
14
90305-GE8-003 Nut, u (14mm) |
90305-GE8-003 |
from US $4.29 |
||
|
15
|
15
91071-MA0-003 Bearing, rr. |
91071-MA0-003 |
from US $13.74 |
||
|
16
|
16
91252-958-013 Dust seal (42x62x7) |
91252-958-013 |
from US $14.36 |
||
|
17
|
17
94002-080-000-S NutHEX., 8MM |
94002-080-000-S |
from US $0.44 |
||
|
18
|
18
95701-060-100-0 BoltFLANGE, 6X10 |
95701-060-100-0 |
from US $0.52 |
||
|
19
|
19
95701-0801200 Bolt, flange, 8x12 |
95701-0801200 |
from US $0.62 |
||
|
20
|
20
96150-6007010 Bearing, 6007 |
96150-6007010 |
from US $12.88 |
