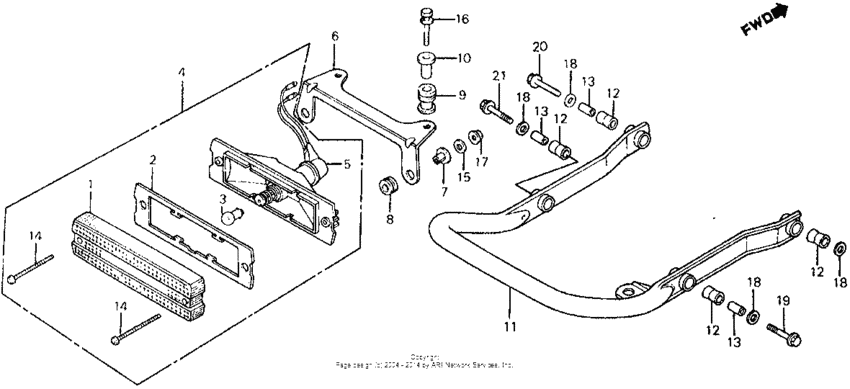

Taillight Diagram Honda ATC ATC200
- Model code
- ATC200X A
- Engine Capacity
- 200
- Year
- 1983
- Sales region
- USA
- Frame
- JH3TB052*DC263800 - JH3TB052*DC340134
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC200
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33302-965-003
Lens, taillight
|
33302-965-003 |
— | ||
|
2
|
2
33303-965-003
Gasket, taillight
|
33303-965-003 |
— | ||
|
3
|
3
34910-504-003
Bulb (12v5w)
|
34910-504-003 |
— | ||
|
4
|
4
33700-VM4-770
Taillight assy.
|
33700-VM4-770 |
— | ||
|
5
|
5
33702-965-003
Cover, socket
|
33702-965-003 |
— | ||
|
6
|
6
33705-965-000
Bracket, taillight
|
33705-965-000 |
— | ||
|
7
|
7
33712-965-000
Collar,tail.mtg
|
33712-965-000 |
— | ||
|
8
|
8
33715-965-000 Rubber |
33715-965-000 |
from US $3.18 |
||
|
9
|
9
33731-958-670
Rubber
|
33731-958-670 |
— | ||
|
10
|
10
33732-958-671
Collar
|
33732-958-671 |
— | ||
|
11
|
11
81200-965-000
Pipe, carrier
|
81200-965-000 |
— | ||
|
12
|
12
81201-965-000
Rub,carry pipe
|
81201-965-000 |
— | ||
|
13
|
13
81202-965-000
Collar,carry pipe
|
81202-965-000 |
— | ||
|
14
|
14
90121-965-003 Screw, pan (4x50) |
90121-965-003 |
US $2.55 |
||
|
15
|
15
90555-357-000
Washer,spl.,4mm
|
90555-357-000 |
— | ||
|
16
|
16
93482-0603508 Bolt-washer (6x35) |
93482-0603508 |
from US $0.59 |
||
|
17
|
17
9405004000 Nut, flange, 4mm |
9405004000 |
from US $0.44 |
||
|
18
|
18
9410308000 Washer, plain, 8mm |
9410308000 |
from US $0.44 |
||
|
19
|
19
95701-0803200 Bolt, flange, 8x32 |
95701-0803200 |
from US $0.74 |
||
|
20
|
20
95701-080-350-0 BoltFLANGE, 8X35 |
95701-080-350-0 |
from US $0.74 |
||
|
21
|
21
95701-0804000 Bolt, flange, 8x40 |
95701-0804000 |
from US $0.74 |
