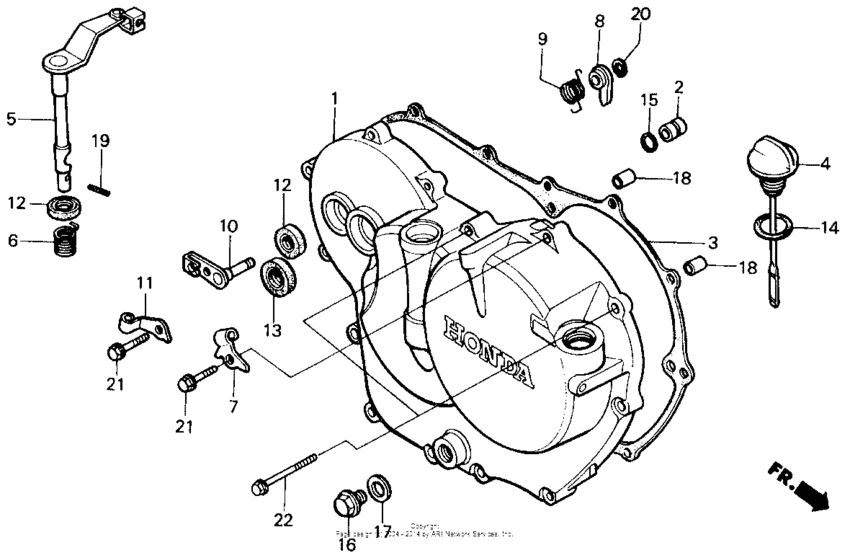

Right crankcase cover Diagram Honda ATC ATC200
- Model code
- ATC200X A
- Engine Capacity
- 200
- Year
- 1986
- Sales region
- USA
- Frame
- JH3TB052*GK500056 - JH3TB052*GK519186
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11330-HB5-010
Cover, r. crankcase
|
11330-HB5-010 |
— | ||
|
2
|
2
11334-HB3-000
Orifice, oil
|
11334-HB3-000 |
— | ||
|
3
|
3
11393-HB5-306 Gasket, r |
11393-HB5-306 |
US $19.35 |
||
|
4
|
4
15650-HB5-000
Gauge,oil level
|
15650-HB5-000 |
— | ||
|
5
|
5
22810-HB5-000
Lever, clutch
|
22810-HB5-000 |
— | ||
|
6
|
6
22815-428-000 Spring, clutch lever |
22815-428-000 |
from US $2.96 |
||
|
7
|
7
22838-HB5-000
Holder,clutch wir
|
22838-HB5-000 |
— | ||
|
8
|
8
28271-428-000
Follower, cam
|
28271-428-000 |
— | ||
|
9
|
9
28274-KK0-000
Spring, follower
|
28274-KK0-000 |
— | ||
|
10
|
10
28280-HB5-010
Shaft, follower
Use up to Engine SN 6300601 |
28280-HB5-010 |
— | ||
|
11
|
11
28295-HB5-000
Stay,dcmp cabl lw
|
28295-HB5-000 |
— | ||
|
12
|
12
91201-965-000 Oil seal (12x22x5) |
91201-965-000 |
from US $2.68 |
||
|
13
|
13
91202-KK0-003 Oil seal (18x29x7) |
91202-KK0-003 |
from US $7.10 |
||
|
14
|
14
91307-KF0-003 O-ring (18x3) |
91307-KF0-003 |
from US $1.42 |
||
|
15
|
15
91319-ME5-003 O-ring, 5.5x1.4 |
91319-ME5-003 |
from US $2.44 |
||
|
16
|
16
92800-12000 BoltDRAIN PLUG, 12MM |
92800-12000 |
from US $1.30 |
||
|
17
|
17
94109-12000 WasherDRAIN PLUG, 12MM |
94109-12000 |
from US $0.34 |
||
|
18
|
18
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
19
|
19
94305-30102 PinSPRING, 3X10 |
94305-30102 |
from US $0.65 |
||
|
20
|
20
94510-10000 CirclipEXTERNAL, 10MM |
94510-10000 |
from US $0.44 |
||
|
21
|
21
96001-0603207 Bolt, flange (6x32) |
96001-0603207 |
from US $0.74 |
||
|
22
|
22
96001-0605007 Bolt, flange (6x50) |
96001-0605007 |
from US $0.81 |
