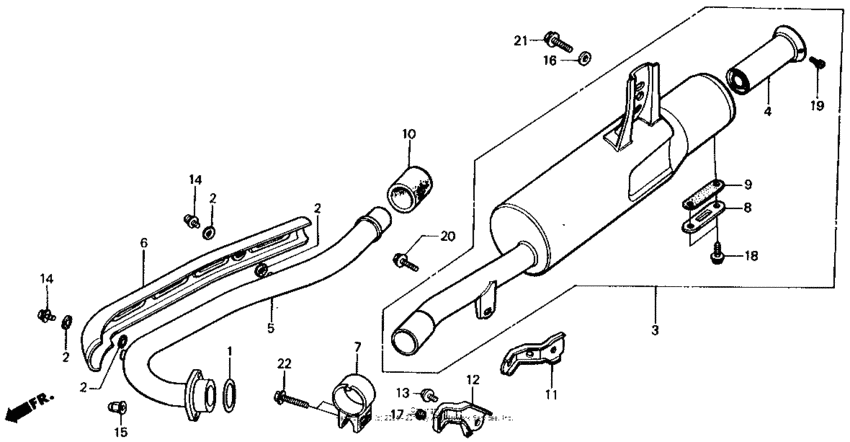

Exhaust muffler Diagram Honda ATC ATC200
- Model code
- ATC200X A
- Engine Capacity
- 200
- Year
- 1987
- Sales region
- USA
- Frame
- JH3TB052*HK600004 - JH3TB052*HK603542
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18291-MN5-650 Gasket, ex. pipe |
18291-MN5-650 |
from US $3.08 |
||
|
2
|
2
18293-MCA-780 Packing, protector |
18293-MCA-780 |
from US $3.92 |
||
|
3
|
3
18310-HB5-671
Muffler comp.
|
18310-HB5-671 |
— | ||
|
4
|
4
18311-MA0-010 Pipe, tail |
18311-MA0-010 |
from US $34 |
||
|
5
|
5
18320-HB5-000
Pipe,exhaust
|
18320-HB5-000 |
— | ||
|
6
|
6
18321-HB5-000
Protector,ex.pipe
|
18321-HB5-000 |
— | ||
|
7
|
7
18371-VM5-000 Band, muffler |
18371-VM5-000 |
from US $15.07 |
||
|
8
|
8
18373-429-010 Lid, muffler |
18373-429-010 |
from US $5 |
||
|
9
|
9
18374-MN1-880 Gasket, muffler lid |
18374-MN1-880 |
from US $4.44 |
||
|
10
|
10
18391-958-306 Gasket, muffler |
18391-958-306 |
from US $18.18 |
||
|
12
|
12
80122-HB5-670
Stay, rr. fender
|
80122-HB5-670 |
— | ||
|
13
|
13
90035-GF4-000 Bolt, check, 8mm |
90035-GF4-000 |
from US $4.88 |
||
|
14
|
14
90110-HA0-000
Screw-washer (6x10)
|
90110-HA0-000 |
— | ||
|
15
|
15
90282-329-000 Nut, 6x15 |
90282-329-000 |
from US $6.36 |
||
|
16
|
16
90410-HC4-000 Washer (10mm) |
90410-HC4-000 |
from US $2.74 |
||
|
17
|
17
90851-SA6-000 PlugHOLE |
90851-SA6-000 |
from US $1.85 |
||
|
18
|
18
93401-060-120-7 BOLT WASHER |
93401-060-120-7 |
from US $0.52 |
||
|
19
|
19
93891-060-120-7 Screw-washer6X12 |
93891-060-120-7 |
from US $0.52 |
||
|
20
|
20
96300-100-160-0 Bolt flange,dr 10 |
96300-100-160-0 |
US $0.81 |
||
|
21
|
21
96300-1002500 Bolt, flange (10x25) |
96300-1002500 |
from US $0.89 |
||
|
22
|
22
96300-0803200 Bolt, flange (8x32) |
96300-0803200 |
from US $0.81 |
