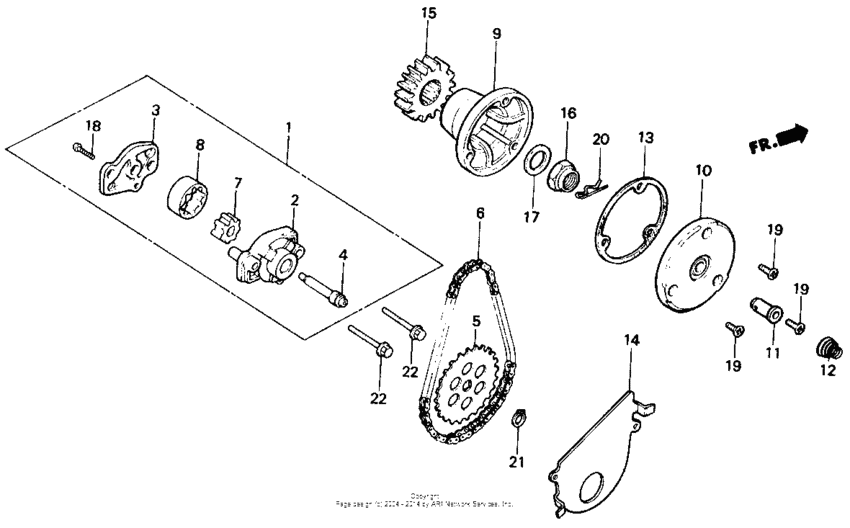

Oil pump Diagram Honda ATC ATC200
- Model code
- ATC200X A
- Engine Capacity
- 200
- Year
- 1987
- Sales region
- USA
- Frame
- JH3TB052*HK600004 - JH3TB052*HK603542
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-HB3-840
Pump assy., oil
|
15100-HB3-840 |
— | ||
|
2
|
2
15101-HB5-000
Body comp..oil pu
|
15101-HB5-000 |
— | ||
|
3
|
3
15116-HB5-000 Plate, oil pump |
15116-HB5-000 |
from US $12.33 |
||
|
4
|
4
15132-HB3-000
Shaft, oil pump
|
15132-HB3-000 |
— | ||
|
5
|
5
15133-KT2-000
Sprocket (28t)
|
15133-KT2-000 |
— | ||
|
6
|
6
15141-HB3-000
Chain, oil pump
|
15141-HB3-000 |
— | ||
|
7
|
7
15331-958-000
Rotor, oil pump
|
15331-958-000 |
— | ||
| replacement | |||||
|
7
|
7
15021-958-000 Rotor Set, Oil Pump |
15021-958-000 |
from US $30.87 |
||
|
8
|
8
15332-958-000
Rotor, oil pump
|
15332-958-000 |
— | ||
| replacement | |||||
|
8
|
8
15021-958-000 Rotor Set, Oil Pump |
15021-958-000 |
from US $30.87 |
||
|
9
|
9
15430-HB5-000
Roter comp.,oil f
|
15430-HB5-000 |
— | ||
|
10
|
10
15436-HB5-000
Cap,oil filter ro
|
15436-HB5-000 |
— | ||
|
11
|
11
15441-HB5-000
Oil,through
|
15441-HB5-000 |
— | ||
|
12
|
12
15446-HB5-000
Spring,oil throug
|
15446-HB5-000 |
— | ||
|
13
|
13
15459-KWK-900 Gskt, oil filter cap |
15459-KWK-900 |
from US $2.59 |
||
| replacement | |||||
|
13
|
13
15459-K70-630 Gskt, oil filter cap |
15459-K70-630 |
from US $2.89 |
||
|
14
|
14
15711-HB3-000
Separator, oil
|
15711-HB3-000 |
— | ||
|
15
|
15
23121-HB5-000
Gear,primary driv
|
23121-HB5-000 |
— | ||
|
16
|
16
90202-HB5-000
Nut special,16mm
|
90202-HB5-000 |
— | ||
|
17
|
17
90434-KR3-000 Washer, 16mm |
90434-KR3-000 |
from US $2.44 |
||
|
18
|
18
93500-030120A Screw, pan, 3x12 |
93500-030120A |
from US $0.36 |
||
|
19
|
19
93600-050140A Screw, flat, 5x14 |
93600-050140A |
from US $0.37 |
||
|
20
|
20
9425110000 Pin, lock, 10mm |
9425110000 |
from US $0.62 |
||
|
21
|
21
94510-10000 CirclipEXTERNAL, 10MM |
94510-10000 |
from US $0.44 |
||
|
22
|
22
96300-0603500 Bolt, flange (6x35) |
96300-0603500 |
US $0.74 |
||
