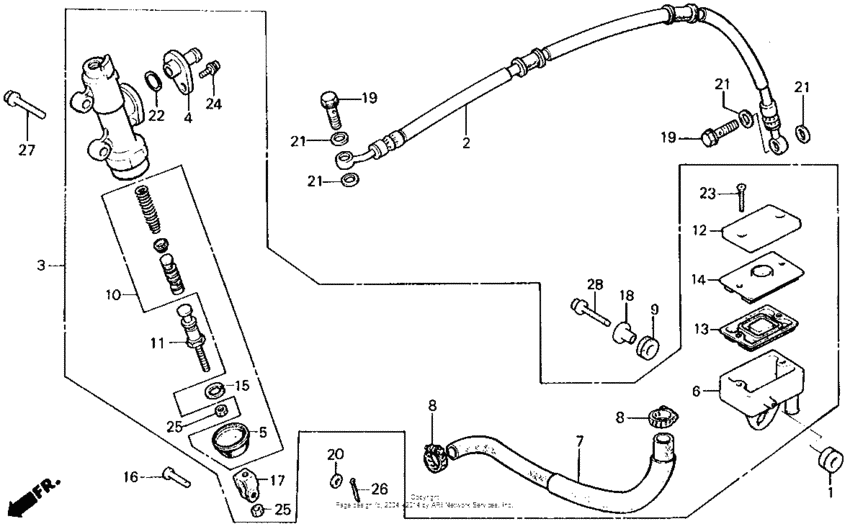

Rear brake master cylinder Diagram Honda ATC ATC200
- Model code
- ATC200X A
- Engine Capacity
- 200
- Year
- 1987
- Sales region
- USA
- Frame
- JH3TB052*HK600004 - JH3TB052*HK603542
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33715-965-000 Rubber |
33715-965-000 |
from US $3.18 |
||
|
2
|
2
43310-HB5-003
Hose assy.,rr.bra
|
43310-HB5-003 |
— | ||
|
3
|
3
43500-HB5-671
Cylinder assy.,rr
|
43500-HB5-671 |
— | ||
|
4
|
4
43503-HB5-006 Connector |
43503-HB5-006 |
from US $7.99 |
||
|
5
|
5
43504-MB2-006 Boot |
43504-MB2-006 |
from US $3.55 |
||
|
6
|
6
43511-HA2-016 Cup, oil |
43511-HA2-016 |
from US $24.51 |
||
|
7
|
7
43512-HB5-671
Hose,master cylin
|
43512-HB5-671 |
— | ||
|
8
|
8
43514-964-006 Clamp |
43514-964-006 |
from US $11.84 |
||
|
9
|
9
43516-HA2-000 Rubber |
43516-HA2-000 |
from US $2.89 |
||
|
10
|
10
43520-MB2-315 Piston set |
43520-MB2-315 |
from US $46.78 |
||
|
11
|
11
43530-MB2-006 Rod, push |
43530-MB2-006 |
from US $19.45 |
||
|
12
|
12
45513-HA2-006 Cap, master cylinder |
45513-HA2-006 |
from US $15.64 |
||
|
13
|
13
45520-MG7-006 Diaphragm |
45520-MG7-006 |
from US $7.70 |
||
|
14
|
14
45521-HA2-006 Plate, diaphragm |
45521-HA2-006 |
from US $7.55 |
||
|
15
|
15
46182-500-013 Circlip |
46182-500-013 |
from US $2.07 |
||
|
16
|
16
46503-371-000 Pin, brake rod |
46503-371-000 |
US $4.07 |
||
|
17
|
17
46504-MB2-006
Joint, brake rod
|
46504-MB2-006 |
— | ||
|
18
|
18
50324-425-010 Collar (6.3x13) |
50324-425-010 |
from US $4 |
||
|
19
|
19
90145-KM3-751 Bolt, oil (10x22) |
90145-KM3-751 |
from US $9.18 |
||
|
20
|
20
90501-310-000 Washer (7x12) |
90501-310-000 |
from US $2.07 |
||
|
21
|
21
46472-568-000 PackingOIL BOLT |
46472-568-000 |
from US $3.18 |
||
|
22
|
22
91212-422-006 O-ring (14.8x2.4) |
91212-422-006 |
from US $3.11 |
||
|
23
|
23
93600-040301A Screw, flat (4x30) |
93600-040301A |
from US $0.37 |
||
|
24
|
24
93893-040-120-8 Screw-washer4X12 |
93893-040-120-8 |
from US $0.58 |
||
|
25
|
25
94002-080-000-S NutHEX., 8MM |
94002-080-000-S |
from US $0.44 |
||
|
26
|
26
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
27
|
27
96300-0602000 Bolt, flange (6x20) |
96300-0602000 |
from US $0.59 |
||
|
28
|
28
96300-0602500 Bolt, flange, 6x25 |
96300-0602500 |
from US $0.74 |
