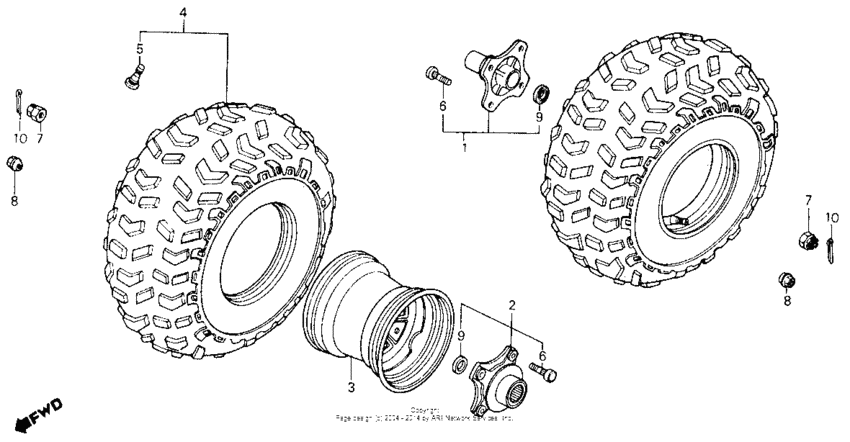

Rear wheel 86,87 Diagram Honda ATC ATC250
- Model code
- ATC250ES A
- Engine Capacity
- 250
- Year
- 1987
- Sales region
- USA
- Frame
- JH3TE040*HM300011 - JH3TE040*HM304900
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42500-HA0-680
Hub assy.,l.rr.
|
42500-HA0-680 |
— | ||
|
2
|
2
42600-HA8-680
Hub assy.,r.rr.
|
42600-HA8-680 |
— | ||
|
3
|
3
42701-HA0-680
Rim comp,wheel
|
42701-HA0-680 |
— | ||
|
4
|
4
42710-HA0-683
Tire assy. (25x12-9)
|
42710-HA0-683 |
— | ||
|
5
|
5
42753-VM0-003 Valve, rim |
42753-VM0-003 |
from US $10.06 |
||
|
6
|
6
90103-HA2-003 Bolt, wheel (10x36) |
90103-HA2-003 |
from US $3.67 |
||
|
7
|
7
90304-HM5-A80 Nut, castle (18mm) |
90304-HM5-A80 |
from US $6.07 |
||
|
8
|
8
90314-VM0-771 Nut, wheel |
90314-VM0-771 |
from US $5.03 |
||
|
9
|
9
91255-HA8-004
Oil seal20x28.2x5
|
91255-HA8-004 |
— | ||
|
9
|
9
91255-HA8-003 Oil seal,20x28.2x |
91255-HA8-003 |
US $6.79 |
||
|
10
|
10
9420140300 Pin, split, 4.0x30 |
9420140300 |
from US $0.44 |
