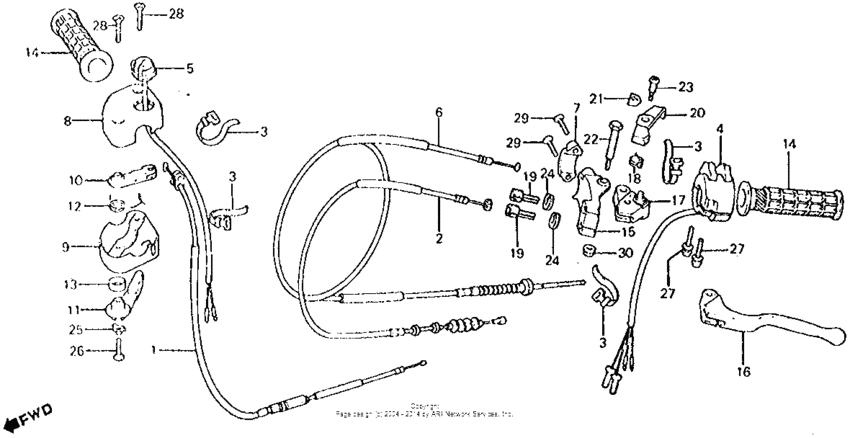

Control levers + cables + switches 81 Diagram Honda ATC ATC250
- Model code
- ATC250R A
- Engine Capacity
- 250
- Year
- 1981
- Sales region
- USA
- Frame
- JH3TB060*BC000020 - JH3TB060*BC011196
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-961-000
Cable comp,throt.
|
17910-961-000 |
— | ||
|
2
|
2
22870-KA8-000
Cable,clutch
|
22870-KA8-000 |
— | ||
|
3
|
3
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.73 |
||
|
4
|
4
35300-429-003
Sw,assy,lighting
|
35300-429-003 |
— | ||
|
5
|
5
35300-958-671
Switch assy., stop
|
35300-958-671 |
— | ||
|
6
|
6
43455-961-000
Cable comp,p/brk.
|
43455-961-000 |
— | ||
|
7
|
7
45517-961-000
Holder
|
45517-961-000 |
— | ||
|
8
|
8
53141-961-000ZA
Cover *nh105*
|
53141-961-000ZA |
— | ||
|
9
|
9
53142-961-000ZA
Case *nh105*
|
53142-961-000ZA |
— | ||
|
10
|
10
53144-961-000
Arm, throttle
|
53144-961-000 |
— | ||
|
11
|
11
53145-957-000
Control lever
|
53145-957-000 |
— | ||
|
12
|
12
53146-943-000
Spring
|
53146-943-000 |
— | ||
|
13
|
13
53148-957-003
Bush, throttle lever
|
53148-957-003 |
— | ||
|
14
|
14
53165-961-000
Grip, handlebar
|
53165-961-000 |
— | ||
|
15
|
15
53172-961-000 Brkt, l. handlebar |
53172-961-000 |
US $59.21 |
||
|
16
|
16
53178-KF0-000 Lever, l. handlebar |
53178-KF0-000 |
from US $39.58 |
||
|
17
|
17
53180-961-000
Arm, parking brake
|
53180-961-000 |
— | ||
|
18
|
18
53191-961-000
Spg,p/brk.lever
|
53191-961-000 |
— | ||
|
19
|
19
53192-268-000 Bolt, cable adj. |
53192-268-000 |
from US $3.85 |
||
|
20
|
20
53192-961-000
Lever,p/brk.lock
|
53192-961-000 |
— | ||
|
21
|
21
87574-961-010
Mark,pkg.brk.lev.
|
87574-961-010 |
— | ||
|
22
|
22
90114-961-000
Bolt
|
90114-961-000 |
— | ||
|
23
|
23
90115-961-000 Screw |
90115-961-000 |
from US $2.37 |
||
|
24
|
24
90321-315-670 Nut, fixing |
90321-315-670 |
from US $5.83 |
||
|
25
|
25
90501-957-000
Washer, lock (5mm)
|
90501-957-000 |
— | ||
|
26
|
26
92101-05022-0A Bolt, hex., 5x22 |
92101-05022-0A |
from US $0.44 |
||
|
27
|
27
93500-050-160-A Screw |
93500-050-160-A |
from US $0.37 |
||
|
28
|
28
93700-050220B Screw, oval (5x22) |
93700-050220B |
from US $0.59 |
||
|
29
|
29
93700-060250B Screw, oval (6x25) |
93700-060250B |
from US $0.74 |
||
|
30
|
30
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
