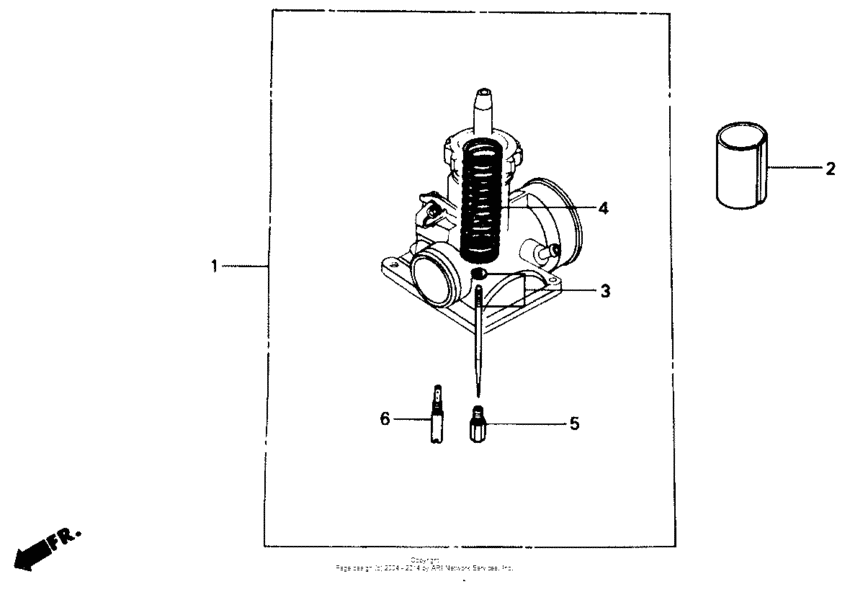

Carburetor optional kit 85 Diagram Honda ATC ATC250
- Model code
- ATC250R A
- Engine Capacity
- 250
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TB060*FC400019 - JH3TB060*FC426863
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16020-KA3-741
Op kit parts set
|
16020-KA3-741 |
— | ||
|
2
|
2
16111-KA3-004
Valve,throttle
|
16111-KA3-004 |
— | ||
|
2
|
2
16111-KA3-701
Valve, throttle
|
16111-KA3-701 |
— | ||
|
3
|
3
16201-KA3-711
Needle set,jet
|
16201-KA3-711 |
— | ||
|
3
|
3
16202-KA4-741
Needle set, jet
|
16202-KA4-741 |
— | ||
|
3
|
3
16202-KA3-004
Needle set,jet
|
16202-KA3-004 |
— | ||
|
3
|
3
16203-KA3-004
Needle set,jet
|
16203-KA3-004 |
— | ||
|
3
|
3
16203-KA3-711
Needle set, jet
|
16203-KA3-711 |
— | ||
|
3
|
3
16205-KA4-004
Needle set, jet
|
16205-KA4-004 |
— | ||
|
3
|
3
16012-KA3-004
Needle set, jet
|
16012-KA3-004 |
— | ||
|
3
|
3
16208-KA4-004
Needle set, jet
|
16208-KA4-004 |
— | ||
|
3
|
3
16209-KA4-004 Needle set, jet |
16209-KA4-004 |
US $24.51 |
||
|
4
|
4
16210-KA3-701
Spg,compress.coil
|
16210-KA3-701 |
— | ||
|
5
|
5
99101-3571280 Jet, main (#128) |
99101-3571280 |
from US $6.66 |
||
|
5
|
5
99101-3571300 Jet, main (#130) |
99101-3571300 |
from US $6.66 |
||
|
5
|
5
99101-3571320 Jet, main (#132) |
99101-3571320 |
from US $6.66 |
||
|
5
|
5
99101-3571350 Jet, main (#135) |
99101-3571350 |
from US $6.66 |
||
|
5
|
5
99101-3571380 Jet, main (#138) |
99101-3571380 |
from US $6.66 |
||
|
5
|
5
99101-3571400 Jet, main (#140) |
99101-3571400 |
from US $6.66 |
||
|
5
|
5
99101-3571450 Jet, main (#145) |
99101-3571450 |
from US $6.66 |
||
|
5
|
5
99101-357-1480 Jet, main (#148) |
99101-357-1480 |
from US $6.66 |
||
|
5
|
5
99113-GHB1500 Jet, main (#150) |
99113-GHB1500 |
US $11.51 |
||
|
5
|
5
99101-3571520 Jet, main (#152) |
99101-3571520 |
from US $7 |
||
|
5
|
5
99113-GHB1550 Jet, main (#155) |
99113-GHB1550 |
US $11.48 |
||
|
5
|
5
99113-GHB1580 Jet, main (#158) |
99113-GHB1580 |
US $11.51 |
||
|
6
|
6
99103-4410620 Jet, slow (#62) |
99103-4410620 |
US $5.33 |
||
|
6
|
6
99103-441-0650 Jet,slow #65 |
99103-441-0650 |
US $5.33 |
||
|
6
|
6
99103-4410700 Jet, slow (#70) |
99103-4410700 |
from US $5.33 |
||
|
6
|
6
99103-4410720 Jet, slow (#72) |
99103-4410720 |
US $5.33 |
