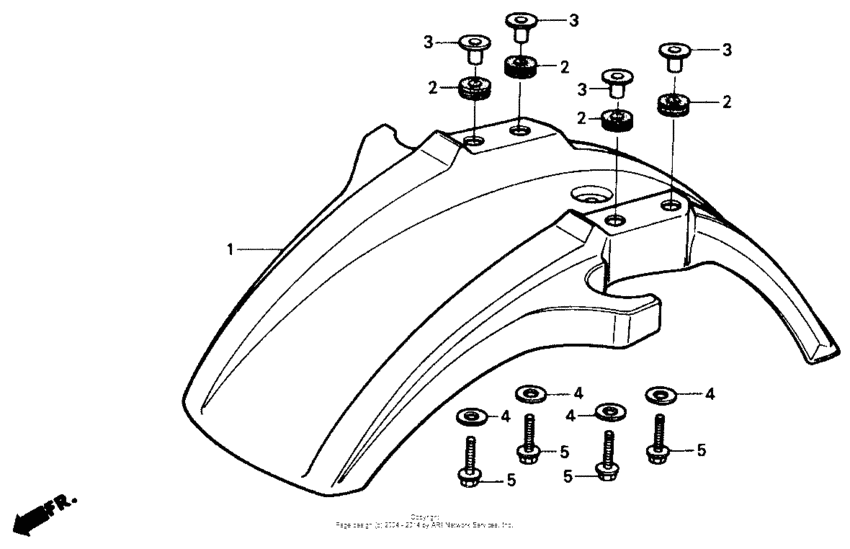

Front fender Diagram Honda ATC ATC250
- Model code
- ATC250R A
- Engine Capacity
- 250
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TB060*FC400019 - JH3TB060*FC426863
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61100-HA2-010ZA
Fender,fr.*r-109*
|
61100-HA2-010ZA |
— | ||
|
2
|
2
61103-430-000 Rubber, fr |
61103-430-000 |
from US $4.59 |
||
|
3
|
3
61104-444-000 Collar,fend.mtg. |
61104-444-000 |
from US $7.10 |
||
|
4
|
4
90404-680-000 Washer6.5X25X1.5 |
90404-680-000 |
US $7.48 |
||
|
5
|
5
96300-0602500 Bolt, flange, 6x25 |
96300-0602500 |
from US $0.74 |
