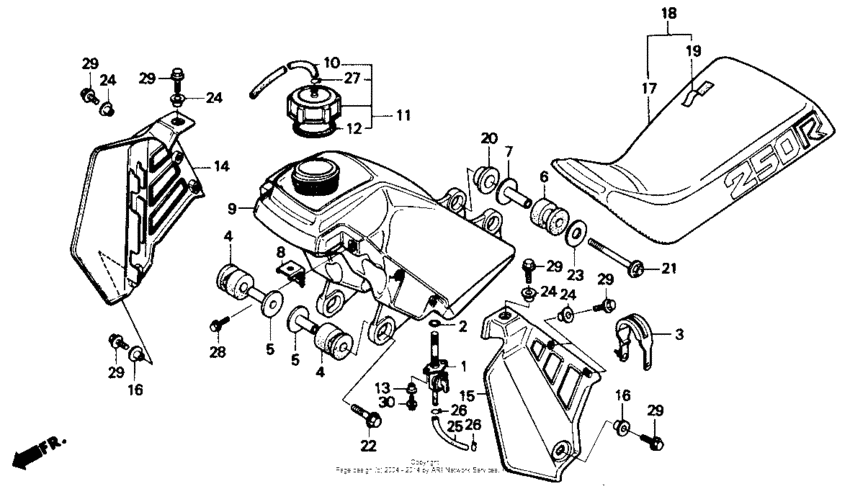

Fuel tank seat Diagram Honda ATC ATC250
- Model code
- ATC250R A
- Engine Capacity
- 250
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TB060*FC400019 - JH3TB060*FC426863
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16950-HA2-015 Cock assy,fuel |
16950-HA2-015 |
from US $69.70 |
||
|
2
|
2
16997-467-000 O-ring, 11.8x3.55 |
16997-467-000 |
from US $2.07 |
||
|
3
|
3
17504-HA2-000
Rubber
|
17504-HA2-000 |
— | ||
|
4
|
4
17505-HA2-000
Rubber,tank mt fr
|
17505-HA2-000 |
— | ||
|
5
|
5
17506-HA2-000
Collar, fr
|
17506-HA2-000 |
— | ||
|
6
|
6
17507-HA2-000
Rubber, rr
|
17507-HA2-000 |
— | ||
|
7
|
7
17508-HA2-000
Collar, rr.
|
17508-HA2-000 |
— | ||
|
8
|
8
17509-HA2-000
Brkt, shroud (upper)
|
17509-HA2-000 |
— | ||
|
9
|
9
17510-HA2-P00
Tank comp,fuel
|
17510-HA2-P00 |
— | ||
|
10
|
10
17521-429-000 Tube |
17521-429-000 |
from US $5.33 |
||
|
11
|
11
17620-MA0-405
Cap, fuel tank
|
17620-MA0-405 |
— | ||
|
12
|
12
17624-467-020
Gasket
|
17624-467-020 |
— | ||
|
13
|
13
17626-467-000 Collar, fuel tank setting |
17626-467-000 |
from US $4.44 |
||
|
14
|
14
19030-HA2-670ZA Shroud,r.r*r-109* |
19030-HA2-670ZA |
from US $62.02 |
||
|
15
|
15
19035-HA2-670ZA Shroud,l.r*r-109* |
19035-HA2-670ZA |
from US $62.02 |
||
|
16
|
16
19509-HA2-000
Collar,6x22
|
19509-HA2-000 |
— | ||
|
17
|
17
77100-HA2-P00
Seat comp
|
77100-HA2-P00 |
— | ||
|
20
|
20
80108-HA2-000
Speacer,fr.catch
|
80108-HA2-000 |
— | ||
|
21
|
21
90002-HA2-000
Bolt,flange,8x38
|
90002-HA2-000 |
— | ||
|
22
|
22
90068-415-000
Bolt, flange (8x55)
Use up to Frame SN FC400033 |
90068-415-000 |
— | ||
|
22
|
22
95701-0805500 Bolt, flange, 8x55Use from Frame SN FC400034 |
95701-0805500 |
from US $0.86 |
||
|
23
|
23
90502-HA2-000
Washer 8x30
|
90502-HA2-000 |
— | ||
|
24
|
24
90556-044-000 Washer, fr |
90556-044-000 |
from US $1.35 |
||
|
25
|
25
95001-750-0860M Bulk hose (7.5x8000) |
95001-750-0860M |
from US $76.16 |
||
|
26
|
26
95002-02120 ClipTUBE (B12) |
95002-02120 |
from US $0.52 |
||
|
27
|
27
95002-50000 ClipTUBE(C9) |
95002-50000 |
from US $0.37 |
||
|
28
|
28
96001-060-100-0 BoltFLANGE, 6X10 |
96001-060-100-0 |
from US $0.59 |
||
|
29
|
29
96001-060-120-0 BoltFLANGE, 6X12 |
96001-060-120-0 |
from US $0.59 |
||
|
30
|
30
96001-060-160-0 BoltFLANGE, 6X16 |
96001-060-160-0 |
from US $0.41 |
