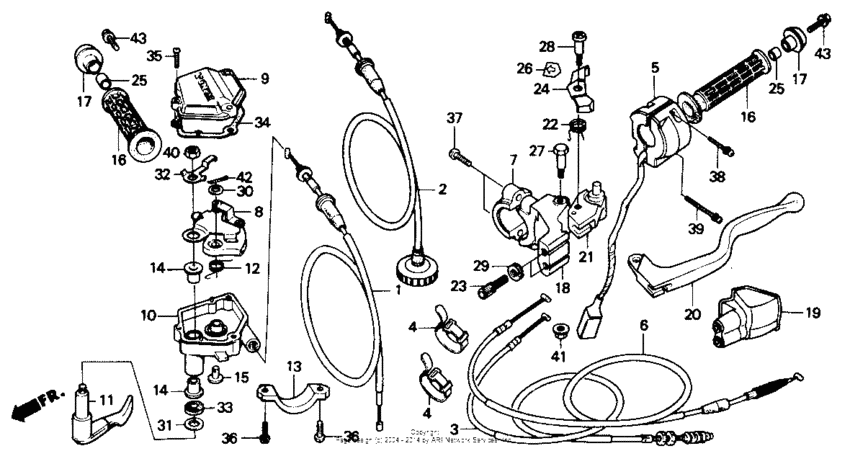

Handle switch Diagram Honda ATC ATC250
- Model code
- ATC250R A
- Engine Capacity
- 250
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TB060*FC400019 - JH3TB060*FC426863
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-HA2-010
Cable, throttle
|
17910-HA2-010 |
— | ||
|
3
|
3
22870-HA2-000
Cable comp,clutch
|
22870-HA2-000 |
— | ||
|
4
|
4
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.73 |
||
|
5
|
5
35200-HA2-000
Sw assy,light eng
|
35200-HA2-000 |
— | ||
|
6
|
6
43455-HA2-000
Cable comp,p/brk
|
43455-HA2-000 |
— | ||
|
7
|
7
45517-961-000
Holder
|
45517-961-000 |
— | ||
|
8
|
8
53140-HA2-000
Link comp,throt
|
53140-HA2-000 |
— | ||
|
9
|
9
53141-HB9-000
Cover, throttle case
|
53141-HB9-000 |
— | ||
|
10
|
10
53142-HB9-000
Case, throttle lever
|
53142-HB9-000 |
— | ||
|
11
|
11
53145-HA0-305 Lever, throttle |
53145-HA0-305 |
US $24.31 |
||
| replacement | |||||
|
11
|
11
53145-HA0-770 Lever, throttle |
53145-HA0-770 |
from US $23.66 |
||
|
12
|
12
53146-HA2-000
Spring
|
53146-HA2-000 |
— | ||
|
13
|
13
53147-965-000
Holder
|
53147-965-000 |
— | ||
|
14
|
14
53148-HA0-000 Bush, throttle pivot |
53148-HA0-000 |
from US $5.33 |
||
|
15
|
15
53150-HA2-000
Pin, throttle center
|
53150-HA2-000 |
— | ||
|
16
|
16
53165-958-010 Grip, handle |
53165-958-010 |
from US $16.32 |
||
|
17
|
17
53167-958-680 Guard, handlebar end |
53167-958-680 |
from US $2.95 |
||
|
18
|
18
53172-961-000 Brkt, l. handlebar |
53172-961-000 |
US $59.21 |
||
|
20
|
20
53178-965-000
Lever, l. handlebar
|
53178-965-000 |
— | ||
|
21
|
21
53180-961-010
Arm, parking brake
|
53180-961-010 |
— | ||
|
22
|
22
53191-961-010 Spring |
53191-961-010 |
from US $2.89 |
||
|
23
|
23
53192-268-000 Bolt, cable adj. |
53192-268-000 |
from US $3.85 |
||
|
24
|
24
53192-965-000 Lever |
53192-965-000 |
from US $13.57 |
||
|
25
|
25
84906-118-000 Collar, number bracket setting |
84906-118-000 |
from US $2.37 |
||
|
26
|
26
87574-961-010
Mark,pkg.brk.lev.
|
87574-961-010 |
— | ||
|
27
|
27
90114-961-000
Bolt
|
90114-961-000 |
— | ||
|
28
|
28
90115-961-000 Screw |
90115-961-000 |
from US $2.37 |
||
|
29
|
29
90321-315-670 Nut, fixing |
90321-315-670 |
from US $5.83 |
||
|
30
|
30
90503-964-000
Washer, flat screw
|
90503-964-000 |
— | ||
|
31
|
31
90504-HA0-000 Washer (9x20) |
90504-HA0-000 |
from US $2.10 |
||
|
32
|
32
90505-HA2-000
Washer, lock (6mm)
|
90505-HA2-000 |
— | ||
|
33
|
33
91210-HA0-004 Dust seal (9x16x5) |
91210-HA0-004 |
from US $3.80 |
||
|
34
|
34
91354-HA2-010
Gasket
|
91354-HA2-010 |
— | ||
|
35
|
35
93500-040-120-G ScrewPAN, 4X12 |
93500-040-120-G |
from US $0.38 |
||
|
36
|
36
93500-050180G Screw, pan, 5x18 |
93500-050180G |
from US $0.38 |
||
|
37
|
37
93700-060250B Screw, oval (6x25) |
93700-060250B |
from US $0.74 |
||
|
38
|
38
93892-0502007 Screw-washer (5x20) |
93892-0502007 |
from US $0.44 |
||
|
39
|
39
93892-0502007 Screw-washer (5x20) |
93892-0502007 |
from US $0.44 |
||
|
40
|
40
94002-060-000-S NutHEX., 6MM |
94002-060-000-S |
from US $0.44 |
||
|
41
|
41
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
42
|
42
9420110150 Pin, split (1.0mm) |
9420110150 |
from US $0.37 |
||
|
43
|
43
95701-060-250-7 BoltFLANGE, 6X25 |
95701-060-250-7 |
from US $0.59 |
||
