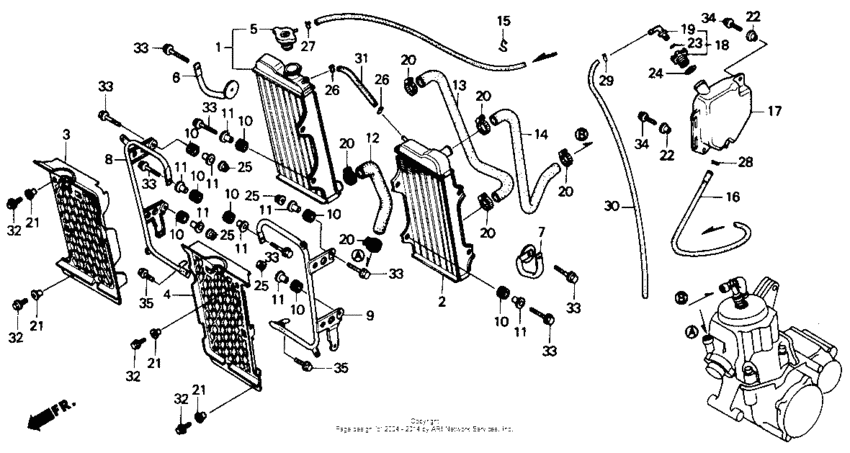

Radiator Diagram Honda ATC ATC250
- Model code
- ATC250R A
- Engine Capacity
- 250
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TB060*FC400019 - JH3TB060*FC426863
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19010-HA2-003
Radiator, r
|
19010-HA2-003 |
— | ||
|
2
|
2
19015-HA2-003
Radiator, l
|
19015-HA2-003 |
— | ||
|
3
|
3
19033-HA2-000
Grille, r. radiator
|
19033-HA2-000 |
— | ||
|
4
|
4
19034-HA2-000
Grill,l radiator.
|
19034-HA2-000 |
— | ||
|
5
|
5
19037-KA4-701 Cap |
19037-KA4-701 |
from US $36.14 |
||
| replacement | |||||
|
5
|
5
19045-MZ1-621 Cap, radiator |
19045-MZ1-621 |
from US $20.25 |
||
|
6
|
6
19043-HA2-000
Stay, r. radiator
|
19043-HA2-000 |
— | ||
|
7
|
7
19044-HA2-000
Stay, l. radiator
|
19044-HA2-000 |
— | ||
|
8
|
8
19045-HA2-000
Guard, r. radiator
|
19045-HA2-000 |
— | ||
|
9
|
9
19046-HA2-000
Guard comp,l rad
|
19046-HA2-000 |
— | ||
|
10
|
10
19052-HA2-000
Rubber
|
19052-HA2-000 |
— | ||
|
11
|
11
19056-HA2-000 Collar |
19056-HA2-000 |
from US $5.03 |
||
|
12
|
12
19061-HA2-000
Hose water a.
|
19061-HA2-000 |
— | ||
|
13
|
13
19062-HA2-000
Hose water b
|
19062-HA2-000 |
— | ||
|
14
|
14
19063-HA2-000
Hose water c.
|
19063-HA2-000 |
— | ||
|
15
|
15
19065-HA2-000
Clamp, cross tube
|
19065-HA2-000 |
— | ||
|
16
|
16
19066-HA2-000
Tube, breather
|
19066-HA2-000 |
— | ||
|
17
|
17
19101-HA2-505
Tank, reserve
|
19101-HA2-505 |
— | ||
|
18
|
18
19102-HB9-670
Cap, reserve tank
|
19102-HB9-670 |
— | ||
|
19
|
19
19105-HB9-670
Joint, reserve tank
|
19105-HB9-670 |
— | ||
|
20
|
20
19506-KA4-000 Clamp, water hose |
19506-KA4-000 |
from US $6.66 |
||
|
21
|
21
90522-170-700 Collar, gearshift lever setting |
90522-170-700 |
from US $1.57 |
||
|
22
|
22
90563-045-000 Washer, number bracket mounting |
90563-045-000 |
from US $4.59 |
||
|
23
|
23
91301-PC9-003 O-ring7.7X2.3 (ARAI) |
91301-PC9-003 |
from US $2 |
||
|
24
|
24
91351-KE1-000 O-ring, 21.8x2.4Use up to Frame SN FC409161 |
91351-KE1-000 |
from US $3.35 |
||
|
24
|
24
91352-HA2-003
O-ring (21.5x3.1)
Use from Frame SN FC409162 |
91352-HA2-003 |
— | ||
|
25
|
25
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
26
|
26
95002-01130 ClipTUBE(A13) |
95002-01130 |
from US $1.40 |
||
|
27
|
27
95002-02100 ClipTUBE(B10) |
95002-02100 |
from US $0.52 |
||
|
28
|
28
95002-02120 ClipTUBE (B12) |
95002-02120 |
from US $0.52 |
||
|
29
|
29
95002-70000 ClipTUBE (C11) Use from Frame SN FC400034 |
95002-70000 |
from US $0.44 |
||
|
29
|
29
9500280000 Clip, tube (c12)Use up to Frame SN FC400033 |
9500280000 |
from US $0.44 |
||
|
30
|
30
95003-190-0110M Bulk hose, vinylUse from Frame SN FC400034 |
95003-190-0110M |
from US $2.66 |
||
|
30
|
30
95003-230-0310M Tube (8x12x3000)Use up to Frame SN FC400033 |
95003-230-0310M |
from US $7.99 |
||
|
31
|
31
95005-750-0120M Bulk hose (7.3x1000) |
95005-750-0120M |
from US $11.69 |
||
|
32
|
32
96001-060-100-0 BoltFLANGE, 6X10 |
96001-060-100-0 |
from US $0.59 |
||
|
33
|
33
96001-060-280-0 BoltFLANGE, 6X28 |
96001-060-280-0 |
from US $0.74 |
||
|
34
|
34
96300-0601600 Bolt, flange (6x16) |
96300-0601600 |
from US $0.59 |
||
|
35
|
35
96300-0801200 Bolt, flange (8x12) |
96300-0801200 |
from US $0.74 |
||
