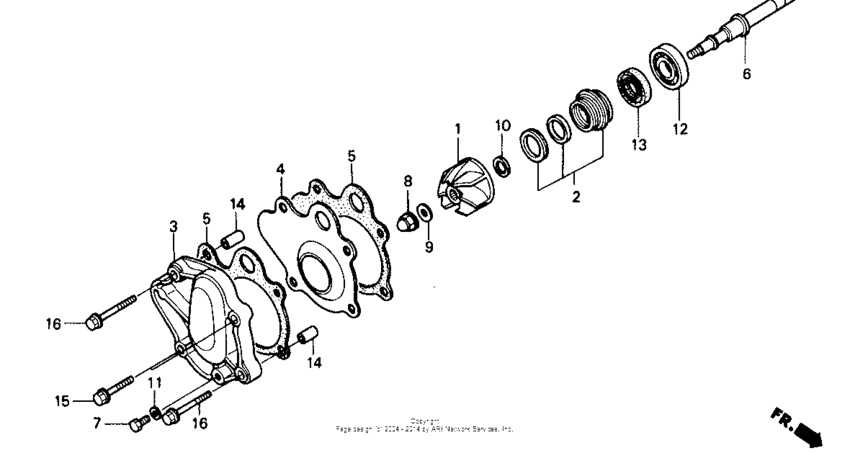

Water pump Diagram Honda ATC ATC250
- Model code
- ATC250R A
- Engine Capacity
- 250
- Year
- 1985
- Sales region
- USA
- Frame
- JH3TB060*FC400019 - JH3TB060*FC426863
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19215-KA3-710
Impeller, water pump
|
19215-KA3-710 |
— | ||
|
2
|
2
19217-657-023 Seal, mechanical |
19217-657-023 |
from US $42.98 |
||
|
3
|
3
19221-HA2-000
Cover, water pump
|
19221-HA2-000 |
— | ||
|
4
|
4
19222-HA2-000 Separator |
19222-HA2-000 |
from US $6.48 |
||
|
5
|
5
19229-HA2-306 Gasket |
19229-HA2-306 |
from US $4.77 |
||
|
6
|
6
19241-HA2-000
Shaft, water pump
|
19241-HA2-000 |
— | ||
|
7
|
7
90037-360-000 Bolt, oil check |
90037-360-000 |
from US $2.74 |
||
|
8
|
8
90201-415-000 Nut, cap, 6mm |
90201-415-000 |
from US $3.03 |
||
|
9
|
9
90441-706-000 Washer, sealing, 6mm |
90441-706-000 |
from US $1.04 |
||
|
10
|
10
90454-KA4-000 Washer (8x13) |
90454-KA4-000 |
from US $3.48 |
||
|
11
|
11
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.15 |
||
|
12
|
12
91001-KA4-003 Bearing (12x28x7) |
91001-KA4-003 |
from US $7.22 |
||
|
13
|
13
91201-965-000 Oil seal (12x22x5) |
91201-965-000 |
from US $2.68 |
||
|
14
|
14
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
15
|
15
96000-0602500 Bolt, flange, 6x25 |
96000-0602500 |
US $24.50 |
||
| replacement | |||||
|
15
|
15
96001-060-250-0 BoltFLANGE, 6X25 |
96001-060-250-0 |
from US $0.74 |
||
|
15
|
15
96001-060-250-0 BoltFLANGE, 6X25 |
96001-060-250-0 |
from US $0.74 |
||
|
16
|
16
96001-0603200 Bolt, flange, 6x32 |
96001-0603200 |
from US $0.74 |
||
