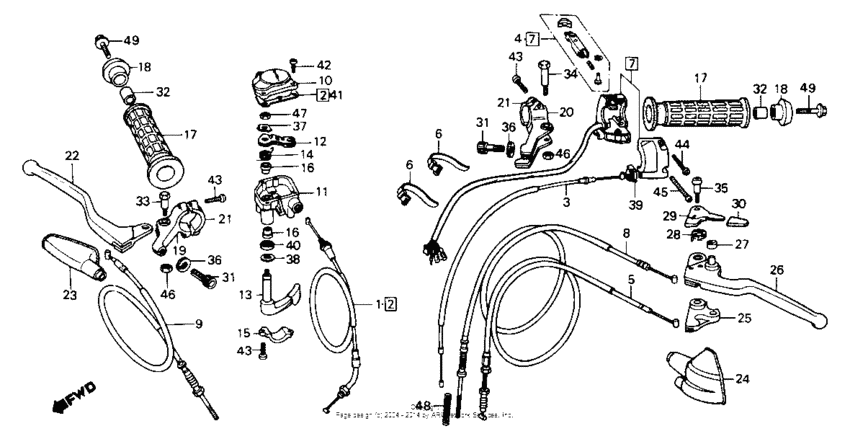

Switch + handle lever + cable Diagram Honda ATC ATC250
- Model code
- ATC250SX A
- Engine Capacity
- 250
- Year
- 1987
- Sales region
- USA
- Frame
- JH3TE042*HK200001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
17910-HA6-315
Cable, throttle
|
17910-HA6-315 |
— | ||
|
3
|
3
17950-HA6-770
Cable, choke
|
17950-HA6-770 |
— | ||
|
4
|
4
17962-HA6-680
Lever,choke
|
17962-HA6-680 |
— | ||
|
5
|
5
22880-HA6-680
Cable,rvs.assist
|
22880-HA6-680 |
— | ||
|
6
|
6
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.73 |
||
|
7
|
7
35200-HA6-682
Switch assy
|
35200-HA6-682 |
— | ||
|
8
|
8
43460-HA6-770
Cable,hand brake
|
43460-HA6-770 |
— | ||
|
9
|
9
45450-HA6-770
Cable fr brake
|
45450-HA6-770 |
— | ||
|
10
|
10
53141-HA0-010
Cover,throt.case
|
53141-HA0-010 |
— | ||
|
11
|
11
53142-HA0-020
Case.throt.lever
|
53142-HA0-020 |
— | ||
|
12
|
12
53144-HA0-010 Arm, throttle |
53144-HA0-010 |
from US $6.81 |
||
|
13
|
13
53145-HA0-305 Lever, throttle |
53145-HA0-305 |
US $24.31 |
||
| replacement | |||||
|
13
|
13
53145-HA0-770 Lever, throttle |
53145-HA0-770 |
from US $23.66 |
||
|
14
|
14
53146-HA0-000 Spring |
53146-HA0-000 |
from US $3.27 |
||
|
15
|
15
53147-965-000
Holder
|
53147-965-000 |
— | ||
|
16
|
16
53148-HA0-000 Bush, throttle pivot |
53148-HA0-000 |
from US $5.33 |
||
|
17
|
17
53165-958-010 Grip, handle |
53165-958-010 |
from US $16.32 |
||
|
18
|
18
53167-958-680 Guard, handlebar end |
53167-958-680 |
from US $2.95 |
||
|
19
|
19
53171-HA6-680
Bracket, r
|
53171-HA6-680 |
— | ||
|
20
|
20
53172-HA8-682
Bracket, brake lever
|
53172-HA8-682 |
— | ||
|
21
|
21
53173-376-000 Holder |
53173-376-000 |
from US $13.35 |
||
|
22
|
22
53175-HA6-405
Lever, r. handlebar
|
53175-HA6-405 |
— | ||
|
23
|
23
53176-VM6-000
Cvr, r. handle lever
|
53176-VM6-000 |
— | ||
|
24
|
24
53177-HA0-680 Cover, l. handlebar |
53177-HA0-680 |
from US $14.28 |
||
|
25
|
25
53179-HA6-000 Arm, reverse assist |
53179-HA6-000 |
from US $16.18 |
||
|
26
|
26
53180-HA8-770 Lever, rr. brake |
53180-HA8-770 |
from US $33.32 |
||
|
27
|
27
53187-VM6-000 Cap, reverse pin |
53187-VM6-000 |
from US $3.18 |
||
|
28
|
28
53191-961-010 Spring |
53191-961-010 |
from US $2.89 |
||
|
29
|
29
53192-HA8-771 Lever, parking lock |
53192-HA8-771 |
from US $8.29 |
||
|
30
|
30
53193-HA0-770 Cap, parking lever |
53193-HA0-770 |
from US $2.95 |
||
|
31
|
31
53193-968-000 Bolt, wire adjusting |
53193-968-000 |
from US $9.24 |
||
|
32
|
32
84906-118-000 Collar, number bracket setting |
84906-118-000 |
from US $2.37 |
||
|
33
|
33
90113-HA6-770 Bolt,hndl.lever p |
90113-HA6-770 |
from US $2.74 |
||
|
34
|
34
90114-HA6-000
Bolt
|
90114-HA6-000 |
— | ||
|
35
|
35
90115-HA6-000 Screw |
90115-HA6-000 |
from US $1.87 |
||
|
36
|
36
90321-315-670 Nut, fixing |
90321-315-670 |
from US $5.83 |
||
|
37
|
37
90501-HA0-000 Washer, lock, 6mm |
90501-HA0-000 |
from US $2.56 |
||
|
38
|
38
90504-HA0-000 Washer (9x20) |
90504-HA0-000 |
from US $2.10 |
||
|
39
|
39
90651-HA0-680 Clip, choke cable |
90651-HA0-680 |
from US $3.77 |
||
|
40
|
40
91210-HA0-004 Dust seal (9x16x5) |
91210-HA0-004 |
from US $3.80 |
||
|
41
|
41
91532-HA0-020 Gasket |
91532-HA0-020 |
from US $1.67 |
||
|
42
|
42
93500-040-160-G ScrewPAN, 4X16 |
93500-040-160-G |
from US $0.37 |
||
|
43
|
43
93500-050180G Screw, pan, 5x18 |
93500-050180G |
from US $0.38 |
||
|
44
|
44
93500-050250G Screw, pan, 5x25 |
93500-050250G |
from US $0.44 |
||
|
45
|
45
93500-050350G Screw, pan (5x35) |
93500-050350G |
from US $0.44 |
||
|
46
|
46
94001-060-700-S NutHEX., 6MM |
94001-060-700-S |
from US $0.44 |
||
|
47
|
47
94002-060-000-S NutHEX., 6MM |
94002-060-000-S |
from US $0.44 |
||
|
48
|
48
43467-HA0-000
Spring, rr.
|
43467-HA0-000 |
— | ||
|
49
|
49
95701-060-250-7 BoltFLANGE, 6X25 |
95701-060-250-7 |
from US $0.59 |
||
