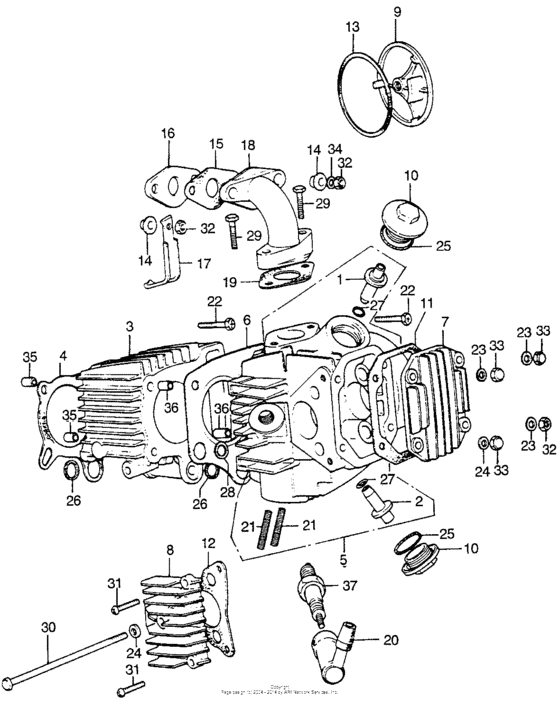

Cylinder + cylinder head + cylinder head cover Diagram Honda ATC ATC70
- Model code
- ATC70 A
- Engine Capacity
- 72
- Sales region
- USA
- Frame
- ATC701000001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12023-035-405 Guide, valve |
12023-035-405 |
US $13.87 |
||
|
2
|
2
12023-051-320
Guide, ex. valve
|
12023-051-320 |
— | ||
|
3
|
3
12101-GB0-910 Cylinder |
12101-GB0-910 |
from US $210.80 |
||
|
4
|
4
12191-GW8-681
Gasket, cylinder
|
12191-GW8-681 |
— | ||
| replacement | |||||
|
4
|
4
12191-GW8-682 Gasket, cylinder |
12191-GW8-682 |
US $6.51 |
||
|
5
|
5
12200-087-305
Cylinder head
|
12200-087-305 |
— | ||
|
6
|
6
12251-111-505 Gasket, cyl hd |
12251-111-505 |
US $25.57 |
||
|
7
|
7
12301-035-000 Cover, cylinder head |
12301-035-000 |
US $15.37 |
||
|
8
|
8
12331-035-000 Cvr, r. cyl hd side |
12331-035-000 |
US $19.91 |
||
|
9
|
9
12341-035-000 Cvr, l. cyl hd side |
12341-035-000 |
from US $15.37 |
||
|
10
|
10
12361-300-000 Cap, valve adj. |
12361-300-000 |
from US $13.04 |
||
|
11
|
11
12391-GW8-680 Gasket, cyl hd cvr |
12391-GW8-680 |
US $5.71 |
||
| replacements | |||||
|
11
|
11
12391-GW8-681 Gasket, cyl hd cvr |
12391-GW8-681 |
US $4.91 |
||
|
11
|
11
12391-KVM-C20 GASKET, CYLINDER HEAD |
12391-KVM-C20 |
from US $4 |
||
|
12
|
12
12394-035-010 Gasket, r. cylinder |
12394-035-010 |
from US $4.07 |
||
|
13
|
13
12395-GW8-681 Gasket, l |
12395-GW8-681 |
US $6.83 |
||
| replacement | |||||
|
13
|
13
12395-GW8-682 Gasket, l |
12395-GW8-682 |
from US $4.29 |
||
|
14
|
14
16196-040-004
Ring,insulator
|
16196-040-004 |
— | ||
|
15
|
15
16201-098-010 Gasket, insulator |
16201-098-010 |
from US $3.40 |
||
|
16
|
16
16211-098-306 Insulator, carb |
16211-098-306 |
from US $7.97 |
||
|
17
|
17
16236-128-000
Clamper,fuel tube
|
16236-128-000 |
— | ||
|
18
|
18
17111-937-000
Pipe, inlet
|
17111-937-000 |
— | ||
|
19
|
19
17119-088-831 Gasket, in. pipe |
17119-088-831 |
from US $2.96 |
||
| replacement | |||||
|
19
|
19
17119-088-832 Gasket, in. pipe |
17119-088-832 |
US $6.95 |
||
|
20
|
20
30700-KE2-942 Cap, spark plug |
30700-KE2-942 |
from US $21.78 |
||
|
21
|
21
90033-041-020 Bolt, stud (6x32) |
90033-041-020 |
from US $2.44 |
||
|
22
|
22
90082-035-010 Bolt (6mm) |
90082-035-010 |
from US $2.15 |
||
|
23
|
23
90442-035-000 Washer (6mm) |
90442-035-000 |
from US $2.29 |
||
|
24
|
24
90443-035-000 Washer a (6mm) |
90443-035-000 |
from US $2.22 |
||
|
25
|
25
91302-001-020 O-ring, 30.8mm |
91302-001-020 |
from US $3.63 |
||
|
26
|
26
91303-035-000 Gasket (16mm) |
91303-035-000 |
from US $4.66 |
||
|
27
|
27
91306-028-000 O ring 9.5x1.6 |
91306-028-000 |
from US $3.33 |
||
|
28
|
28
91306-141-000 Gasket, rubber (9mm) |
91306-141-000 |
from US $3.40 |
||
|
29
|
29
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
30
|
30
92101-06110-0A Bolt, hex. (6x112) |
92101-06110-0A |
from US $1.04 |
||
|
31
|
31
93500-060-200-A ScrewPAN, 6X20 |
93500-060-200-A |
from US $0.44 |
||
|
32
|
32
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
33
|
33
9402106020 Nut, cap (6mm) |
9402106020 |
from US $0.74 |
||
|
34
|
34
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
35
|
35
9430108120 Pin a, dowel, 8x12 |
9430108120 |
from US $0.89 |
||
|
36
|
36
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
37
|
37
98056-57713 Plug,spark |
98056-57713 |
from US $3.20 |
||
| replacement | |||||
|
37
|
37
98056-57718 Spark plug (cr7hsa) |
98056-57718 |
from US $3.49 |
||
