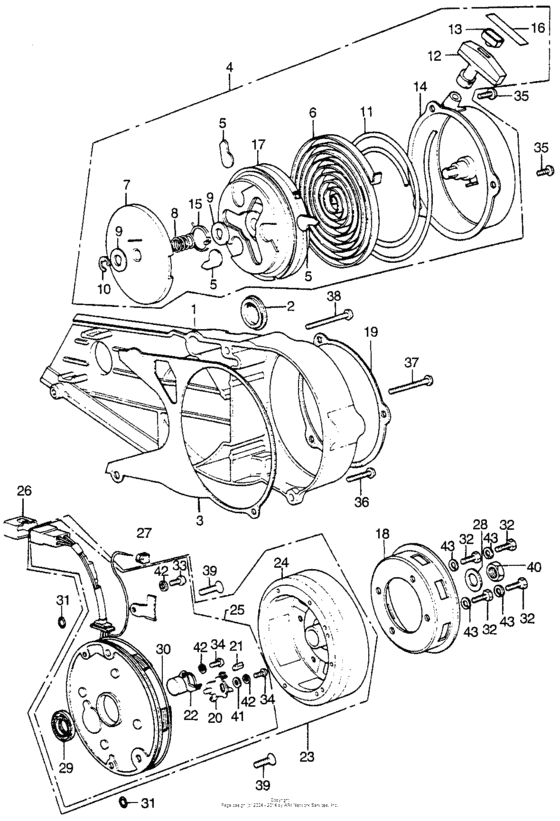

Left crankcase cover + alternator + recoil starter Diagram Honda ATC ATC70
- Model code
- ATC70 A
- Engine Capacity
- 72
- Sales region
- USA
- Frame
- ATC701000001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11341-937-000
Cover, l. crankcase
|
11341-937-000 |
— | ||
|
2
|
2
11391-351-000
Cap
|
11391-351-000 |
— | ||
|
3
|
3
11401-041-306
Gasket, l
|
11401-041-306 |
— | ||
|
4
|
4
28400-937-004AU
Starter assy. *nh35*
|
28400-937-004AU |
— | ||
|
5
|
5
28401-937-004 Ratchet,starter |
28401-937-004 |
from US $9.79 |
||
|
6
|
6
28402-937-014 Spring, starter return |
28402-937-014 |
from US $35.85 |
||
|
7
|
7
28403-937-004
Plate,friction
|
28403-937-004 |
— | ||
|
8
|
8
28404-937-004
Spring,friction
|
28404-937-004 |
— | ||
|
9
|
9
28405-937-004
Washer
|
28405-937-004 |
— | ||
|
10
|
10
28406-937-004
Ring e
|
28406-937-004 |
— | ||
|
11
|
11
28407-937-004
Rope,recoil
|
28407-937-004 |
— | ||
|
12
|
12
28408-943-004
Knob, starter
|
28408-943-004 |
— | ||
|
13
|
13
28409-918-000
Stopper,rope
|
28409-918-000 |
— | ||
|
14
|
14
28410-937-004AU
Case *nh35*
|
28410-937-004AU |
— | ||
|
15
|
15
28413-937-004
Spring set
|
28413-937-004 |
— | ||
|
16
|
16
28414-918-000
Tape,knob
|
28414-918-000 |
— | ||
|
17
|
17
28420-937-004 Pulley,recoil |
28420-937-004 |
US $98.70 |
||
|
18
|
18
28430-957-014
Pulley,starter
|
28430-957-014 |
— | ||
|
19
|
19
28440-937-306 Gasket, starter |
28440-937-306 |
from US $7.25 |
||
|
20
|
20
30202-041-015 Points |
30202-041-015 |
from US $28.02 |
||
|
21
|
21
30205-041-005 Felt, oil |
30205-041-005 |
from US $3.70 |
||
|
22
|
22
30250-041-005 Condenser |
30250-041-005 |
from US $19.18 |
||
|
23
|
23
31100-937-005
Alternator assy.
|
31100-937-005 |
— | ||
|
24
|
24
31121-937-005
Rotor
|
31121-937-005 |
— | ||
|
25
|
25
31141-098-731
Stator
|
31141-098-731 |
— | ||
|
26
|
26
32138-937-000
Cover,coupler,4p
|
32138-937-000 |
— | ||
|
27
|
27
32981-035-000 Grommet |
32981-035-000 |
US $2.44 |
||
|
28
|
28
90426-035-000 Washer, magnet fixing |
90426-035-000 |
from US $2.66 |
||
|
29
|
29
91202-GK4-722 Oil seal (18.9x30x5) |
91202-GK4-722 |
from US $4.59 |
||
|
30
|
30
91301-035-003 O-ring (107x2) |
91301-035-003 |
from US $3.20 |
||
|
31
|
31
91317-171-003 O-ring (6x1.7) |
91317-171-003 |
from US $2.66 |
||
|
32
|
32
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
33
|
33
93500-040-050-A Screw,pan,4x5 |
93500-040-050-A |
US $7 |
||
|
33
|
33
93500-040-060-A ScrewPAN, 4X6 |
93500-040-060-A |
from US $0.37 |
||
|
34
|
34
93500-040-100-A ScrewPAN, 4X10 |
93500-040-100-A |
from US $0.37 |
||
|
35
|
35
93500-060120B Screw, pan, 6x12 |
93500-060120B |
from US $0.59 |
||
|
36
|
36
93500-060-200-A ScrewPAN, 6X20 |
93500-060-200-A |
from US $0.44 |
||
|
37
|
37
93500-060280A Screw, pan, 6x28 |
93500-060280A |
from US $0.52 |
||
|
38
|
38
93500-060350A Screw, pan, 6x35 |
93500-060350A |
from US $0.52 |
||
|
39
|
39
93600-060-160-A ScrewFLAT, 6X16 |
93600-060-160-A |
from US $0.44 |
||
|
40
|
40
9403010000 Nut, hex., 10mm |
9403010000 |
from US $0.55 |
||
|
41
|
41
94101-04000 WasherPLAIN, 4MM |
94101-04000 |
from US $0.37 |
||
|
42
|
42
94111-04000 WasherSPRING, 4MM |
94111-04000 |
from US $0.37 |
||
|
43
|
43
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
