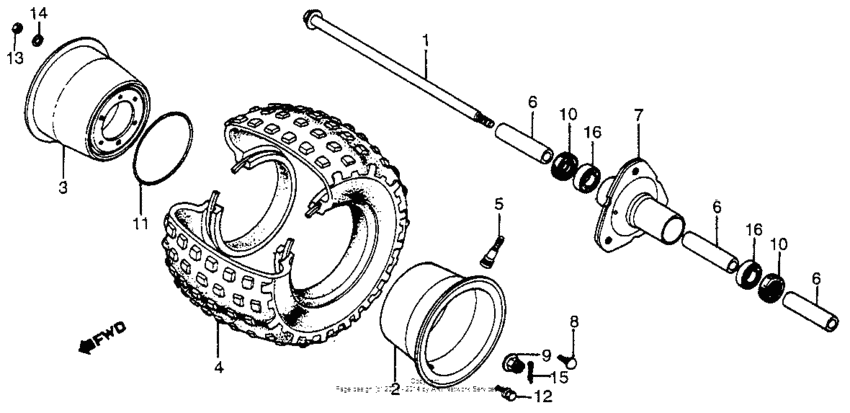

Front wheel Diagram Honda ATC ATC70
- Model code
- ATC70 A
- Engine Capacity
- 72
- Year
- 1981
- Sales region
- USA
- Frame
- JH3TB030*BC600001 - JH3TB030*BC611215
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42301-362-010
Axle,rear wheel
|
42301-362-010 |
— | ||
|
2
|
2
42716-937-000ZA
Rim,outer*nh-35m*
|
42716-937-000ZA |
— | ||
|
3
|
3
42717-937-000ZA
Rim,inner*nh-35m*
|
42717-937-000ZA |
— | ||
|
4
|
4
4275Z-HB2-003
Tire (16x8.0-7)
|
4275Z-HB2-003 |
— | ||
|
5
|
5
42753-SB8-661 ValveRIM (SCHRADER) |
42753-SB8-661 |
US $27.50 |
||
|
6
|
6
44311-957-000
Coller,fr. axle
|
44311-957-000 |
— | ||
|
7
|
7
44610-957-000
Hub comp.fr.wheel
|
44610-957-000 |
— | ||
|
8
|
8
90101-937-000
Bolt,wheel
|
90101-937-000 |
— | ||
|
9
|
9
90305-401-680 Nut, axle, 14mm |
90305-401-680 |
from US $11.54 |
||
|
10
|
10
91205-957-004 Seal,21.7x35x6.5 |
91205-957-004 |
from US $9.70 |
||
|
11
|
11
91351-937-000 O-ring,wheel |
91351-937-000 |
from US $9.02 |
||
|
12
|
12
93402-0802000 Bolt-washer (8x20) |
93402-0802000 |
from US $0.67 |
||
|
12
|
12
93492-080-200-0 Bolt-washer8X20 |
93492-080-200-0 |
from US $0.59 |
||
| replacement | |||||
|
12
|
12
93402-0802000 Bolt-washer (8x20) |
93402-0802000 |
from US $0.67 |
||
|
13
|
13
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
14
|
14
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
15
|
15
94201-30250 PinSPLIT, 3.0X25 |
94201-30250 |
from US $0.44 |
||
| replacement | |||||
|
15
|
15
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
15
|
15
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
16
|
16
96100-6202000 Bearing, radial ball, 6202 |
96100-6202000 |
from US $4.88 |
||
