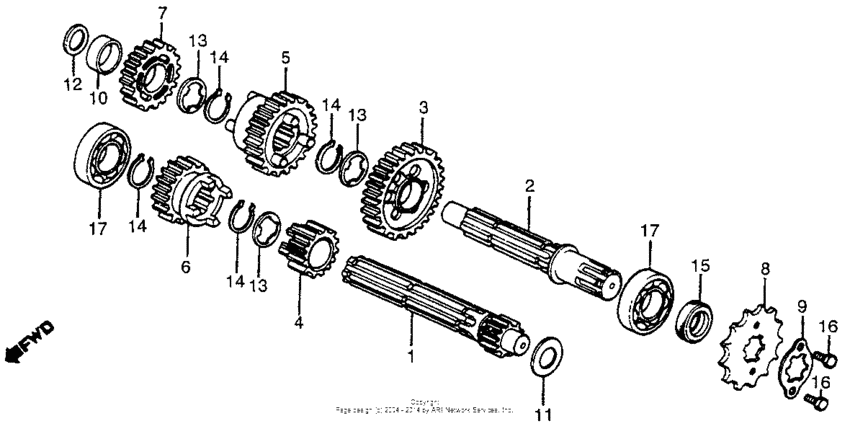

Transmission 78-81 Diagram Honda ATC ATC70
- Model code
- ATC70 A
- Engine Capacity
- 72
- Year
- 1981
- Sales region
- USA
- Frame
- JH3TB030*BC600001 - JH3TB030*BC611215
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23211-041-020
Mainshaft (11t)
|
23211-041-020 |
— | ||
|
2
|
2
23221-041-050 Countershaft, trans |
23221-041-050 |
US $55.05 |
||
|
3
|
3
23421-086-010
Gear,c.low
Use up to Engine SN 2600090 |
23421-086-010 |
— | ||
|
4
|
4
23431-040-060
Gear,m.2nd
Use up to Engine SN 2610185 |
23431-040-060 |
— | ||
|
4
|
4
23431-040-070 Gear (18t)Use from Engine SN 2610186 |
23431-040-070 |
US $40.42 |
||
|
5
|
5
23441-086-010 Gear (31t)Use up to Engine SN 2609535 |
23441-086-010 |
US $48.55 |
||
|
6
|
6
23471-041-040
Gear,m top
Use up to Engine SN 2610185 |
23471-041-040 |
— | ||
|
6
|
6
23471-041-050
Gear (21t)
Use from Engine SN 2610186 |
23471-041-050 |
— | ||
|
7
|
7
23481-086-010 Gear (25t)Use up to Engine SN 2609535 |
23481-086-010 |
US $30.74 |
||
|
8
|
8
23800-040-010 Sprocket (14t) |
23800-040-010 |
from US $16.73 |
||
|
9
|
9
23802-040-000 Plate |
23802-040-000 |
from US $2.15 |
||
|
10
|
10
23911-041-020
Collar, gear
Use up to Engine SN 2610185 |
23911-041-020 |
— | ||
|
11
|
11
90451-121-000 Washer (14mm) |
90451-121-000 |
from US $1.78 |
||
|
12
|
12
90451-141-000 Washer (13.5mm) |
90451-141-000 |
from US $2.96 |
||
|
13
|
13
90461-035-000 Washer (17mm) |
90461-035-000 |
from US $3.03 |
||
|
14
|
14
90601-001-000 Circlip, external, 17mm |
90601-001-000 |
from US $2.22 |
||
|
15
|
15
91203-035-005 Oil seal (17x29x5) |
91203-035-005 |
from US $5.77 |
||
|
16
|
16
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
17
|
17
96100-6203000 Bearing, radial ball, 6203 |
96100-6203000 |
from US $6.07 |
