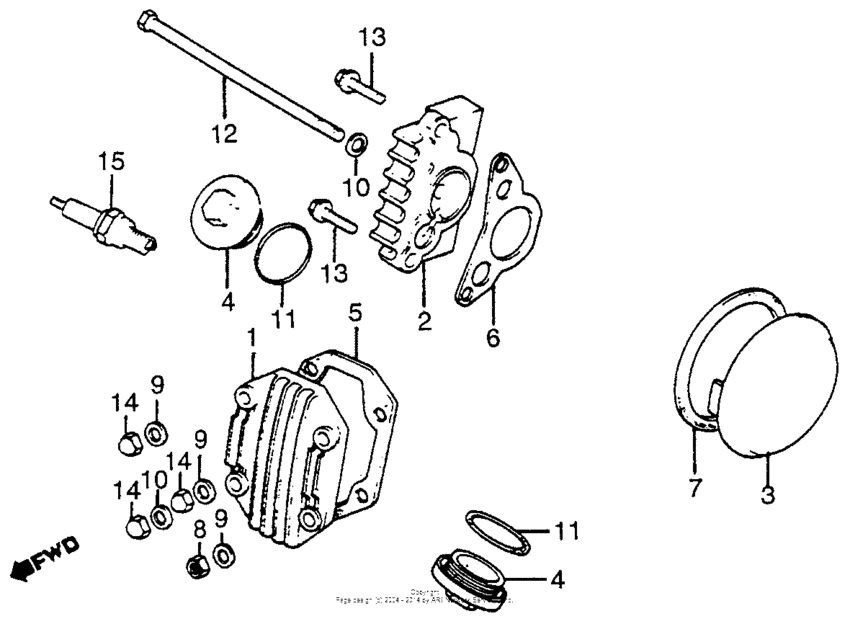

Cylinder head cover Diagram Honda ATC ATC70
- Model code
- ATC70 A
- Engine Capacity
- 72
- Year
- 1983
- Sales region
- USA
- Frame
- JH3TB030*DC800006 - JH3TB030*DC827275
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12301-035-000 Cover, cylinder head |
12301-035-000 |
US $15.37 |
||
|
2
|
2
12331-035-000 Cvr, r. cyl hd side |
12331-035-000 |
US $19.91 |
||
|
3
|
3
12341-035-000 Cvr, l. cyl hd side |
12341-035-000 |
from US $15.37 |
||
|
4
|
4
12361-300-000 Cap, valve adj. |
12361-300-000 |
from US $13.04 |
||
|
5
|
5
12391-GW8-680 Gasket, cyl hd cvr |
12391-GW8-680 |
US $5.71 |
||
| replacements | |||||
|
5
|
5
12391-GW8-681 Gasket, cyl hd cvr |
12391-GW8-681 |
US $4.91 |
||
|
5
|
5
12391-KVM-C20 GASKET, CYLINDER HEAD |
12391-KVM-C20 |
from US $4 |
||
|
6
|
6
12394-035-010 Gasket, r. cylinder |
12394-035-010 |
from US $4.07 |
||
|
7
|
7
12395-GW8-681 Gasket, l |
12395-GW8-681 |
US $6.83 |
||
| replacement | |||||
|
7
|
7
12395-GW8-682 Gasket, l |
12395-GW8-682 |
from US $4.29 |
||
|
8
|
8
90230-087-000 Nut, hex. (6mm) |
90230-087-000 |
from US $1.92 |
||
|
9
|
9
90442-035-000 Washer (6mm) |
90442-035-000 |
from US $2.29 |
||
|
10
|
10
90443-035-000 Washer a (6mm) |
90443-035-000 |
from US $2.22 |
||
|
11
|
11
91302-001-020 O-ring, 30.8mm |
91302-001-020 |
from US $3.63 |
||
|
12
|
12
92101-06111-0A
Bolt, hex. (6x111)
|
92101-06111-0A |
— | ||
|
13
|
13
96001-060-200-0 BoltFLANGE, 6X20 |
96001-060-200-0 |
from US $0.59 |
||
|
14
|
14
9402106020 Nut, cap (6mm) |
9402106020 |
from US $0.74 |
||
|
15
|
15
9805657716 Spark plug (cr7hs) |
9805657716 |
from US $4.08 |
||
|
15
|
15
9805657726 S/plg (u22fsr-u) |
9805657726 |
from US $3.96 |
||
