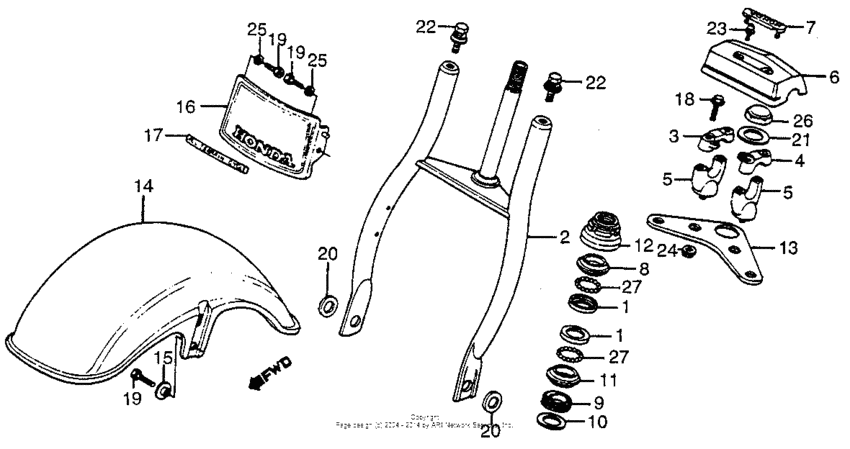

Front fender + front fork 83-85 Diagram Honda ATC ATC70
- Model code
- ATC70 A
- Engine Capacity
- 72
- Year
- 1983
- Sales region
- USA
- Frame
- JH3TB030*DC800006 - JH3TB030*DC827275
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50301-041-010 Race |
50301-041-010 |
from US $7.70 |
||
|
2
|
2
51400-957-030ZA
Fork comp.*r-109*
|
51400-957-030ZA |
— | ||
|
2
|
2
51400-957-303
Fork, fr.
|
51400-957-303 |
— | ||
|
3
|
3
53111-958-000
Holder, r. handlebar
|
53111-958-000 |
— | ||
|
4
|
4
53121-958-000
Holder, l. handlebar
|
53121-958-000 |
— | ||
|
5
|
5
53130-HB9-000
Holder, handle
|
53130-HB9-000 |
— | ||
|
5
|
5
53130-958-000 Holder, handlebar |
53130-958-000 |
US $17.34 |
||
| replacement | |||||
|
5
|
5
53130-HB9-000
Holder, handle
|
53130-HB9-000 |
— | ||
|
6
|
6
53205-957-003
Cover,handle
|
53205-957-003 |
— | ||
|
7
|
7
53206-957-003
Mark,handle cover
|
53206-957-003 |
— | ||
|
8
|
8
53211-028-010 Race, steering cone |
53211-028-010 |
from US $7.55 |
||
|
9
|
9
53214-001-010 Dust seal |
53214-001-010 |
from US $2.44 |
||
| replacement | |||||
|
9
|
9
53214-GJG-C20 DUST SEAL |
53214-GJG-C20 |
from US $2.69 |
||
|
10
|
10
53215-001-000 Washer |
53215-001-000 |
from US $1.92 |
||
|
11
|
11
53212-030-010 Race, steering cone |
53212-030-010 |
from US $7.40 |
||
|
12
|
12
53220-098-670 Thread |
53220-098-670 |
from US $10.21 |
||
|
13
|
13
53231-098-912XW
Plate,fork top
|
53231-098-912XW |
— | ||
|
14
|
14
61100-957-671ZC
Fender,fr *pb122*
|
61100-957-671ZC |
— | ||
|
14
|
14
61100-957-671ZB
Fender.fr.*r-20
|
61100-957-671ZB |
— | ||
|
14
|
14
61100-957-671ZA
Fend,fr *r-109*
|
61100-957-671ZA |
— | ||
|
15
|
15
64348-086-000 Washer, fr. cover fixing |
64348-086-000 |
US $5.73 |
||
|
16
|
16
81210-957-010ZA
Mask,fr.*nh-1*
|
81210-957-010ZA |
— | ||
|
17
|
17
87513-957-000
Emblem,fr.(a.m.)
|
87513-957-000 |
— | ||
|
18
|
18
90111-362-000 Bolt, flange (8x36) |
90111-362-000 |
from US $2.14 |
||
|
19
|
19
90202-957-000
Bolt,tapping,6x16
|
90202-957-000 |
— | ||
|
21
|
21
90503-051-870 Washer |
90503-051-870 |
from US $3.18 |
||
|
22
|
22
93483-100-200-0 Bolt-washer,10x20 |
93483-100-200-0 |
US $0.81 |
||
|
23
|
23
93891-060-200-8 Screw-washer6X20 |
93891-060-200-8 |
from US $0.52 |
||
|
24
|
24
94050-10080 NutFLANGE, 10MM |
94050-10080 |
from US $0.74 |
||
|
25
|
25
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
26
|
26
90304-159-000 Nut, steering stem |
90304-159-000 |
from US $6.22 |
||
|
27
|
27
96211-06000 BallSTEEL, #6(3/16) |
96211-06000 |
from US $0.15 |
||
