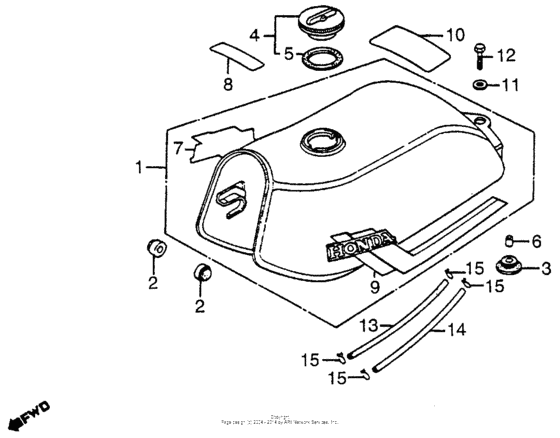

Fuel tank 84 Diagram Honda ATC ATC70
- Model code
- ATC70 A
- Engine Capacity
- 72
- Year
- 1984
- Sales region
- USA
- Frame
- JH3TB030*EC900001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- ATC70
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17520-957-070ZA
Tank sub *r-109*
|
17520-957-070ZA |
— | ||
|
2
|
2
17611-028-000 Rubber, fr |
17611-028-000 |
from US $3.85 |
||
|
3
|
3
17613-120-000 Rubber, fuel tank |
17613-120-000 |
from US $4.29 |
||
|
4
|
4
17620-165-642 Cap, fuel filler |
17620-165-642 |
US $51.77 |
||
| replacement | |||||
|
4
|
4
17620-165-643 CAP, FUEL FILLER |
17620-165-643 |
from US $51.77 |
||
|
5
|
5
17631-096-701
Gasket
|
17631-096-701 |
— | ||
| replacement | |||||
|
5
|
5
17631-096-702 Gasket |
17631-096-702 |
from US $3.98 |
||
|
6
|
6
80109-061-010 Collar b, rr. fender |
80109-061-010 |
from US $2.59 |
||
|
7
|
7
87502-957-030
Strip,r.f/tank
|
87502-957-030 |
— | ||
|
8
|
8
87504-130-720ZA
Label *nh1*
|
87504-130-720ZA |
— | ||
|
8
|
8
87505-918-010
Plate,caution
|
87505-918-010 |
— | ||
|
9
|
9
87512-957-030
Strip,l f/tank
|
87512-957-030 |
— | ||
|
10
|
10
87560-181-760ZE Mark (typeb) |
87560-181-760ZE |
from US $3.92 |
||
|
10
|
10
87560-181-760ZD
Label *nh1*
|
87560-181-760ZD |
— | ||
|
11
|
11
94103-06800 WasherPLAIN, 6MM |
94103-06800 |
from US $0.37 |
||
|
12
|
12
92101-06022-0A BoltHEX., 6X22 |
92101-06022-0A |
from US $0.55 |
||
|
13
|
13
95001-550-0360M Bulk hose (5.5x3000) |
95001-550-0360M |
from US $23.04 |
||
|
14
|
14
95001-550-0360M Bulk hose (5.5x3000) |
95001-550-0360M |
from US $23.04 |
||
|
15
|
15
95002-02100 ClipTUBE(B10) |
95002-02100 |
from US $0.52 |
||
